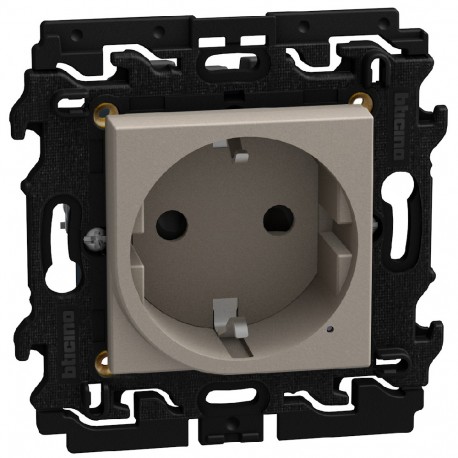

YG4141AC BTCINO LWwN-BASE 2P+T ST
YG4141AC
YG4141AC
BTICINO
1 Pcs.
Automation > Socket outlet
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The YG4141AC BTCINO LWwN-BASE 2P+T ST is an advanced smart-ready power socket module designed to integrate into modern connected building management installations. Smart socket inserts allow remote monitoring and automated control of connected electrical appliances within automated residential and commercial spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection: No
- Rotated central insert: No
- Material quality: Thermoplastic
- Mounting method: Flush mounted
- Special power supply: EV006426
- Connection type: Screwless terminal
- Fault current protection: No
- Nominal voltage: 240 V
- Number of modules (module system): 2
- Compatible with Apple HomeKit: Yes
- Eject-mechanism: No
- Compatible with Amazon Alexa: Yes
- Compatible with Google Assistant: Yes
- Number of ports USB-C: 0
- Min. depth of built-in installation box: 40 mm
- With hinged lid: No
More info
▲| Model | Power socket with protective contact CEE 7/3 (type F) |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Other |
| Number of active (round) contacts | 2 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| With signal lamp | Yes |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of sockets | 1 |
| Phase-separated power outlets | No |
| Number of modules (in case of modular design) | 2 |
| Number of interchangeable sockets | 1 |
| Number of phases | 1 |
| Printing/Marking | none |
| Connection Method | Plug clamp |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Beige |
| Metallic color | No |
| Transparent | No |
| Lockable | Yes |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | Yes |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | none |
| Attachment Type | Hook and screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
|---|---|
| With loop function | Yes |
| Number of loops | 1 |
| With on/off switch | Yes |
| Switching element color | Beige |
| Rotated center insert | No |
| Nominal Voltage | 240 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP41 |
| Impact resistance | IK04 |
| Device width | 76 mm |
| Device height | 72.8 mm |
| Device Depth | 41.5 mm |
| Min. depth of the recessed box | 40 mm |
| Compatible with Apple HomeKit | Yes |
| Compatible with Amazon Alexa | Yes |
| Compatible with Google Assistant | Yes |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| Installation Depth | 29.4 mm |
| Operating Temperature | 5-45°C |
| Storage temperature | 0-45 °C |
| Type of voltage | CC |
| Power Delivery | No |
| Display of markings on the connection terminals | Yes |
| Contains battery and/or accumulator | No |
| Connected Object | Yes |
| Method of operation | Zigbee |
| App download platform | App Store, Google Play Store |
| With voice command | Yes |
| Programmable | Yes |
| Connection Protocol Interoperability | Yes |
| Possibility of connection via Internet box | Yes |
| Supported voice assistants | Google Assistant, Amazon Alexa, Apple Siri |
| Product usage function | Power Distribution |
| App Name | Home + Control |
| Programming medium | Smartphone apps |
