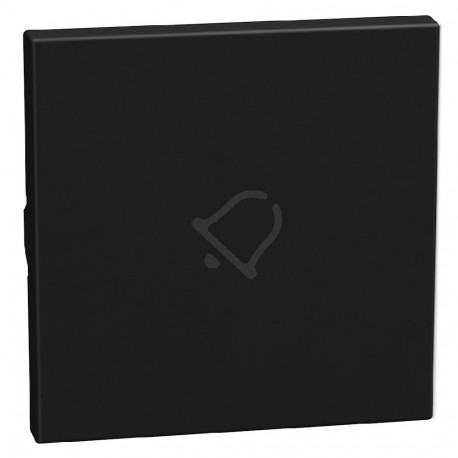

BTICINO YD4916DM2 YD4916DM2 BTCINO LW-LW KEY IL AX. TIMB 2M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4916DM2 BTCINO LW-LW KEY IL AX. TIMB 2M DK

YD4916DM2

YD4916DM2

BTICINO

1 Pcs.

LW-LW KEY IL AX. TIMB 2M DK Light Now axial key bell symbol - 2 modules - Dark

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This unit is a YD4916DM2 BTCINO LW-LW KEY IL AX. TIMB 2M DK, designed by Bticino. Switch keys and actuator buttons mount onto modular wiring devices to provide ergonomic actuation points for lighting circuits, access systems, and general electrical control loops.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 9011
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Imprint/indication (EF003823): Symbol "bell"
  • Depth (EF000049): 8.5 mm

More info

▲
Key for the aesthetic finish of the Light Now axial mechanism, with screen-printed bell.
ModelSingle push button
Printing/Marking"Bell" symbol
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourBlack
RAL number (similar)9011
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width45 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
