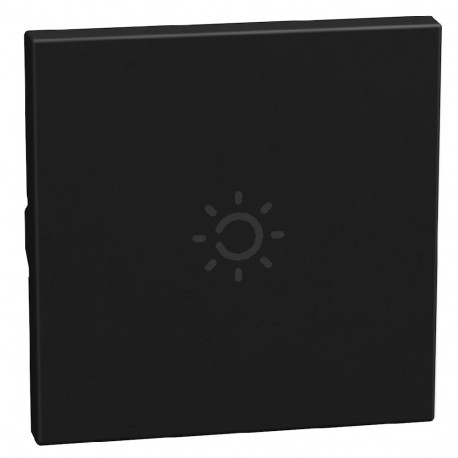

BTICINO YD4916AM2 YD4916AM2 BTCINO LW-LW KEY IL AX. DK 2M LIGHT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4916AM2 BTCINO LW-LW KEY IL AX. DK 2M LIGHT

YD4916AM2

YD4916AM2

BTICINO

1 Pcs.

LW-LW KEY IL AX. DK 2M LIGHT Light Now axial key light symbol - 2 modules - Dark

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino light switch key button (YD4916AM2) acts as the manual interface element for activating lighting circuits within modular electrical wiring installations. These actuator keys attach to underlying switch modules to provide tactile user feedback and clear visual identification in commercial or residential lighting grids. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 9011
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Imprint/indication (EF003823): Symbol "light"
  • Depth (EF000049): 8.5 mm

More info

▲
Key for the aesthetic finish of the Light Now axial mechanism, with screen-printed light.
ModelSingle push button
Printing/Marking"Light" symbol
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourBlack
RAL number (similar)9011
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width45 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
