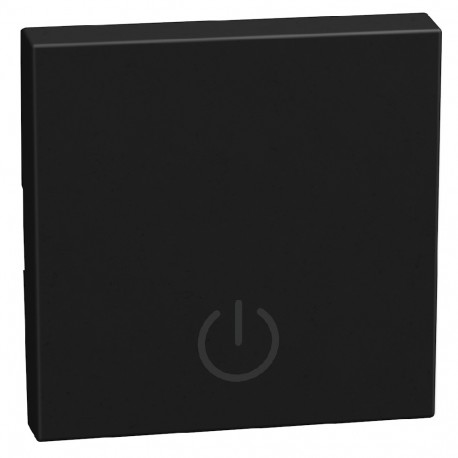

YD4915SM2 BTCINO LW-KEY LW IL BAS CALD. 2M Dragon Knight
YD4915SM2
YD4915SM2
BTICINO
1 Pcs.
LW-KEY LW IL BAS CALD. 2M Dragon Knight
Light Now rocker key boiler symbol - 1 module - Dark
Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is a YD4915SM2 BTCINO LW-KEY LW IL BAS CALD. 2M Dragon Knight button from Bticino. Operator buttons provide the physical interface for controlling mechanical and electronic switching modules in commercial electrical installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 45 mm
- RAL-number (similar) (EF003882): 9011
- Model (EF000010): One-part button
- Material (EF002169): Plastic
- Monitoring window/light outlet (EF003864): Yes
- Surface finishing (EF006569): Matt
- Type of fastening (EF002442): Engage (snap)
- Material quality (EF001257): Thermoplastic
- Halogen free (EF000025): Yes
- With exchangeable lens/symbol (EF006039): No
- With label area (EF005040): No
- Scannable symbol/barrier free (EF012306): No
- Anti-bacterial treatment (EF023790): No
- Impact strength (EF004293): IK04
- Depth (EF000049): 8.5 mm
- Colour (EF000007): Black
More info
▲
Key for the aesthetic finish of the Light Now tilting mechanism, with screen-printed boiler.
| Model | Single push button |
|---|---|
| Printing/Marking | Other |
| Tangible/barrier-free symbol | No |
| Use | Other |
| Suitable for connection of bus system pushbuttons | No |
| Attachment Type | Lock in position |
| Light Output/Control Window | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
|---|---|
| Colour | Black |
| RAL number (similar) | 9011 |
| With label area | No |
| With interchangeable lens/symbol | No |
| Suitable for protection grade (IP) | Other |
| Impact resistance | IK04 |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 8.5 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
