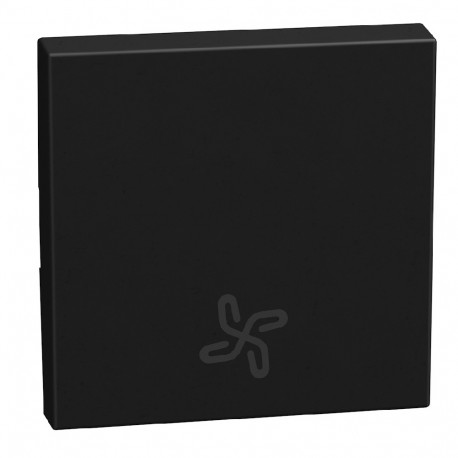

BTICINO YD4915RM2 YD4915RM2 BTCINO LW-KEY LW IL BAS VENT. 2M Dragon Knight View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4915RM2 BTCINO LW-KEY LW IL BAS VENT. 2M Dragon Knight

YD4915RM2

YD4915RM2

BTICINO

1 Pcs.

LW-KEY LW IL BAS VENT. 2M Dragon Knight Light Now rocker key ventilation symbol - 1 module - Dark

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

YD4915RM2 BTCINO LW-KEY LW IL BAS VENT. 2M Dragon Knight produced by Bticino serves as a specialized button actuator for ventilation and blind control mechanisms in modular wiring installations. Installers employ these components to give users dependable local operation over automated indoor climate and airflow devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 9011
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Depth (EF000049): 8.5 mm
  • Colour (EF000007): Black

More info

▲
Key for the aesthetic finish of the Light Now tilting mechanism, with screen-printed ventilation.
ModelSingle push button
Printing/MarkingOther
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourBlack
RAL number (similar)9011
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width45 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
