YD4915PM2 BTCINO LW-LW BASC KEY HEATER. 2M Dragon Knight
YD4915PM2
YD4915PM2
BTICINO
1 Pcs.
Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

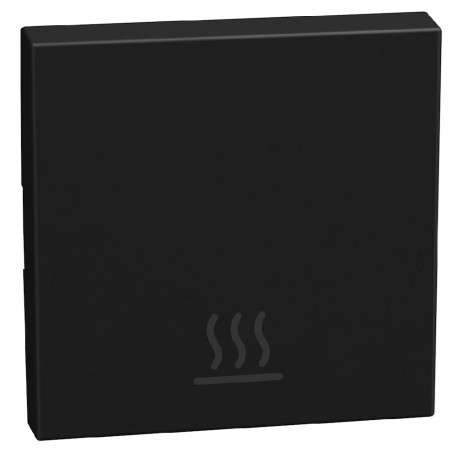

The Bticino YD4915PM2 BTCINO LW-LW BASC KEY HEATER. 2M Dragon Knight is a specialized switch actuator designed to interface with heating control systems in residential and commercial spaces. Actuators of this variety provide clear tactile feedback and visual indicators for climate management setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 45 mm
- RAL-number (similar) (EF003882): 9011
- Model (EF000010): One-part button
- Material (EF002169): Plastic
- Monitoring window/light outlet (EF003864): Yes
- Surface finishing (EF006569): Matt
- Type of fastening (EF002442): Engage (snap)
- Material quality (EF001257): Thermoplastic
- Halogen free (EF000025): Yes
- With exchangeable lens/symbol (EF006039): No
- With label area (EF005040): No
- Scannable symbol/barrier free (EF012306): No
- Anti-bacterial treatment (EF023790): No
- Impact strength (EF004293): IK04
- Depth (EF000049): 8.5 mm
- Colour (EF000007): Black
More info
▲| Model | Single push button |
|---|---|
| Printing/Marking | Other |
| Tangible/barrier-free symbol | No |
| Use | Other |
| Suitable for connection of bus system pushbuttons | No |
| Attachment Type | Lock in position |
| Light Output/Control Window | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
|---|---|
| Colour | Black |
| RAL number (similar) | 9011 |
| With label area | No |
| With interchangeable lens/symbol | No |
| Suitable for protection grade (IP) | Other |
| Impact resistance | IK04 |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 8.5 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
