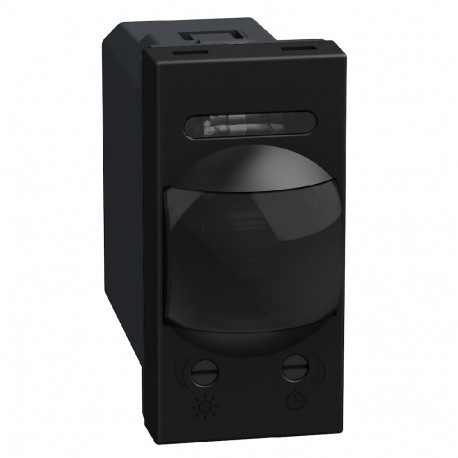

YD4431 BTCINO LW-SENSOR IR 3H 1M DK
YD4431
YD4431
BTICINO
1 Pcs.
LW-SENSOR IR 3H 1M DK
IR Light Now automatic switch - 3 wires - 1 module - dark
Automation > Movement sensor complete
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Bticino lw-sensor ir 3h 1m dk (part number YD4431) is an infrared sensor module designed to govern lighting loads in architectural wiring systems. Motion and presence sensors provide automated illumination control, improving convenience and energy efficiency across various building sectors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 45 mm
- With remote control (EF000483): No
- Bridging switch (EF001099): No
- Suitable for ceiling mounting (EF021180): No
- Staircase light controller (EF001098): Yes
- Connection type (EF000124): Screwed terminal
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Flush mounted
- Min. switch-on time (EF006589): 30 s
- Compatible with Apple HomeKit (EF014925): No
- Detection angle horizontal (EF006582): 2 °
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Min. depth of built-in installation box (EF012278): 45 mm
- Networkable (EF003904): Yes
- Response value sensitivity adjustable (EF003429): Yes
More info
▲
Ecodetectors - Switch with passive IR motion sensor - 3 wires - Verifies natural brightness continuously and not only at the time of detection - Supported powers according to the type of lamp: - LEDs: 0 to 500 VA, fluo tubes with ferromagnetic or electronic transformer: 0 to 1000 VA - Twilight circuit with variable threshold with possibility of exclusion - Adjustable timing from 5 seconds to 10 minutes - Power supply 230 Vac - detection angle: 170º - detection range: 8 m - To be combined with the front support and decorative plate - 1 module.
| Model | Motion Sensor |
|---|---|
| Motion sensor technology | Passive Infrared |
| Constant light dimming | Yes |
| Control de HVAC | No |
| Forced connection | No |
| Forced disconnection | No |
| Animal Zone | No |
| Creep Protection/Field Monitoring | Yes |
| Background monitoring | No |
| Networkable | Yes |
| Scanning angle | 120 ° |
| Optimal mounting height | 1.2 m |
| Stair Lighting Controller | Yes |
| Bypass switch | No |
| Side reach | 4 / |
| Detection field presence max. | 40 m² |
| Front Reach | 4 / |
| Ground Sensing Diameter | 4 / |
| Suitable for wireless streaming | No |
| Remote control | No |
| With remote control | No |
| Adjustable response sensitivity | Yes |
| Adjustable response brightness | No |
| With signalling unit | No |
| Learn function for responsive brightness | No |
| Control function with control insert | No |
| Type of mounting | Recessed mounted (plaster) |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | Yes |
| Connection Method | Screw-on terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| Colour | Black |
| RAL number (similar) | 9011 |
| Transparent | Yes |
| Protection Class (IP) | IP20 |
| Impact resistance | IK04 |
|---|---|
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Nominal Voltage | 230-230 V |
| Minimum duty cycle | 30 sec |
| Maximum duty cycle | 600 min |
| Shutdown delay | 0 seconds |
| Power-on delay | 0 seconds |
| Horizontal detection angle | 2-30 ° |
| Suitable for C-load | No |
| Number of switching zones | 1 |
| Maximum starting current | 2 A |
| Starting current min. | 0.5 A |
| Input Extensions | No |
| Alarm function | No |
| With acoustic sensor | No |
| Ambient Temperature | 5-40 °C |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 49.5 mm |
| Mounting width | 22.5 mm |
| Installation Depth | 35 mm |
| Installation Length | 45 mm |
| Min. depth of the recessed box | 45 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | No |
| Terminal capacity | 1-1.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Label Space/Print Area | No |
| Type of cable entry feedthroughs | Flexible to cut |
| Distance between horizontal clamping centers | 3.5-3.7 mm |
| Circuit breaker | No |
