View larger
Images are for illustrative purposes only. Please refer to data sheet for details

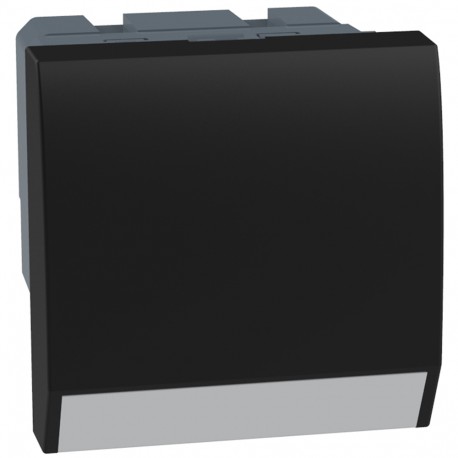

YD4382 BTCINO LW-LAMP RAS LIGHT 230V 2M DK
YD4382
YD4382
BTICINO
10 Pcs.
LW-LAMP RAS LIGHT 230V 2M DK
Light Now Beaconed Pilot - 2 modules - Dark
Automation > Information light signal for domestic switching devices
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Light signalers - Beacon pilot - 230 Vac - Allows to create directional and decorative lighting - Its installation is recommended 30 cm from the ground - With On/Off switch to regulate operation - White LED lamp, consumption 1 W - Luminous flux 70 lumens - To combine with support and decorative plate - 2 modules.
| Type of mounting | Complete device, Recessed mounted (plaster) |
|---|---|
| Number of modules (in case of modular design) | 2 |
| Lamp holder | none |
| With light source | Yes |
| Lamp | Non-interchangeable LED |
| With flashing light | No |
| With fixed symbol/printing | No |
| With interchangeable symbol | No |
| Can be used as a pushbutton | No |
| Attachment Type | Lock in position |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Colour | Black |
| RAL number (similar) | 9011 |
| Transparent | Yes |
| Lamp color | White |
| Suitable for protection grade (IP) | IP20 |
| Nominal Voltage | 230 V |
| Lamp power max. | 0.5 W |
|---|---|
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 38.5 mm |
| Min. depth of the recessed box | 40.5 mm |
| Installation Depth | 30.5 mm |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | No |
| Compliant with commissioning tests (1000 V) | No |
| Antibacterial treatment | No |
| Connection Method | Screw-on terminal |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Label Space/Print Area | No |
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 0.5 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Lamp type (EF002423) | LED non-replaceable |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Engage (snap) |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 230 V |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | Yes |
| Min. depth of built-in installation box (EF012278) | 40.5 mm |
| Colour light source (EF001402) | White |
| Surface protection (EF000139) | Lacquered |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | No |
| RAL-number (similar) (EF003882) | 9011 |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 38.5 mm |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Complete device |
| Application as button (EF003912) | No |
| Device height (EF008809) | 45 mm |
| Lamp holder (EF000048) | None |
| Colour (EF000007) | Black |
| With exchangeable symbol (EF006748) | No |
