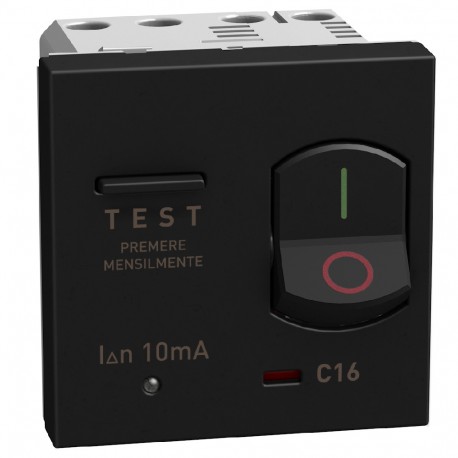

BTICINO YD4305A16 YD4305A16 BTCINO LW-M+DIF 1P+N 16A 10MA 2M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4305A16 BTCINO LW-M+DIF 1P+N 16A 10MA 2M DK

YD4305A16

YD4305A16

BTICINO

1 Pcs.

LW-M+DIF 1P+N 16A 10MA 2M DK Automatic circuit breaker + differential Light Now - 16A - 2 modules - Dark

Automation > Earth leakage circuit breaker
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino model YD4305A16 is a compact modular protection device that integrates residual current monitoring with circuit breaker functions for electrical panel installations. It is commonly used to protect branch circuits from overloads and dangerous ground fault currents in building automation setups.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50/60 Hz
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Ambient temperature during operating (EF007515): -5 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 3000 kA
  • Anti-nuisance tripping version (EF009497): No
  • Rated fault current (EF002358): 10 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Built-in depth (EF000218): 40 mm
  • Number of poles (total) (EF008618): 1
  • Width in number of modular spacings (EF002950): 45
  • Rated insulation voltage Ui (EF001366): 253 V

More info

▲
Automatic circuit breakers and differential - It has a protected pole - Open and closed contact indicator - Test button - 16A - Breaking power: 3,000A - 2 modules - Dark
Number of poles (total)1
Number of protected poles1
Nominal voltage230 V
Nominal insulation voltage Ui253 V
Assigned Voltage Peak Resistance (Uimp)4 kV
Nominal current16 A
Fault Current Rating10 A
Fault Current TypeAC
Power Limitation Class1
Assigned cutting capacity according to EN 610091500 kA
Rated breaking power according to IEC 60947-21500 kA
Assigned Cutting Power Icn according to EN 61009-11500 kA
Disconnect featureNo delay
Current resistance3000 kA
Type of voltageAC
frequency50/60 Hz
Shot curveC
Neutral Conductor CouplingYes
With locking deviceNo
Ambient temperature during operation-5-35 °C
Width in number of modular spaces45
Installation Depth40 mm
Protection against untimely shootingNo
Protection Class (IP)IP20
Solid Connectable Conductor Section2.5-3 mm²
Connectable conductor section1.5-2.5 mm²
Width45 mm
Height45 mm
Depth50 mm
Impact resistanceIK04
Storage temperature-5-35 °C
Nominal Voltage110-230 V
Direction of the electricity supplyOn the back of the product
Display of markings on the connection terminalsNo
Compliant with commissioning tests (1000 V)No
ColourBlack
RAL number9011
Halogen-freeYes
Connection MethodScrew-on terminal
Connection typeOther
Label Space/Print AreaNo
