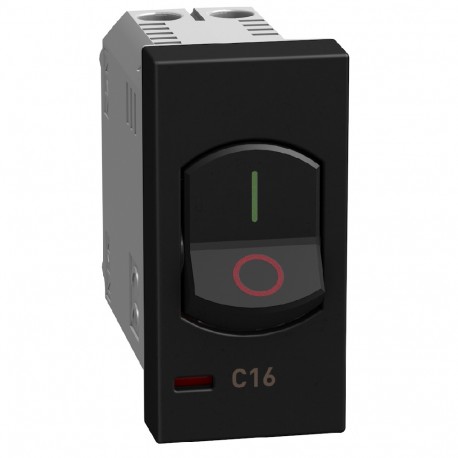

YD4301A16 BTCINO LW-MAG 1P+N 16A 1M DK
YD4301A16
YD4301A16
BTICINO
1 Pcs.
Automation > Miniature circuit breaker (MCB)
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The YD4301A16 BTCINO LW-MAG 1P+N 16A 1M DK is a compact modular circuit breaker engineered to provide reliable overload and short-circuit protection for modern electrical installations.
Circuit breakers serve a critical role in electrical distribution panels by isolating faulty circuits to protect connected loads and wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 2.5 mm²
- Ambient temperature during operating (EF007515): -5 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): No
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 1
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 40 mm
- Number of poles (total) (EF008618): 1
- Width in number of modular spacings (EF002950): 22.5
- Rated insulation voltage Ui (EF001366): 253 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
- Rated current (EF000227): 16 A
More info
▲| Installation Depth | 40 mm |
|---|---|
| Shot curve | C |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Nominal current | 16 A |
| Nominal voltage | 230 V |
| Nominal insulation voltage Ui | 253 V |
| Assigned Voltage Peak Resistance (Uimp) | 4 kV |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Power Limitation Class | 1 |
| Flush mounting | Yes |
| Neutral Conductor Coupling | Yes |
| Additional equipment possible | No |
| Width in number of modular spaces | 22.5 |
| Protection Class (IP) | IP20 |
| Ambient temperature during operation | -5-35 °C |
| Connectable conductor section | 1.5-2.5 mm² |
| Solid Connectable Conductor Section | 2.5-3 mm² |
|---|---|
| Explosion protection | No |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 50 mm |
| Impact resistance | IK04 |
| Storage temperature | -10-70 °C |
| Nominal Voltage | 110-230 V |
| Direction of the electricity supply | On the back of the product |
| Display of markings on the connection terminals | No |
| Colour | Black |
| RAL number | 9011 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Connection type | Other |
| Label Space/Print Area | No |
| Type of mounting | Recessed mounted (plaster) |
