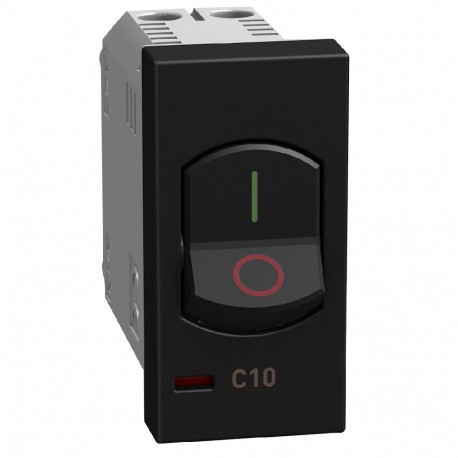

BTICINO YD4301A10 YD4301A10 BTCINO LW-MAG 1P+N 10A 1M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4301A10 BTCINO LW-MAG 1P+N 10A 1M DK

YD4301A10

YD4301A10

BTICINO

1 Pcs.

LW-MAG 1P+N 10A 1M DK Light Now automatic circuit breaker - 10A - 1 module - Dark

Automation > Miniature circuit breaker (MCB)
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing reliable fault protection, the YD4301A10 BTCINO LW-MAG 1P+N 10A 1M DK is a modular circuit breaker built to interrupt electrical currents during overloads or short circuits. These devices are widely used in electrical distribution enclosures to secure individual circuits within commercial and residential properties.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Ambient temperature during operating (EF007515): -5 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): No
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 40 mm
  • Number of poles (total) (EF008618): 1
  • Width in number of modular spacings (EF002950): 22.5
  • Rated insulation voltage Ui (EF001366): 253 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
  • Rated current (EF000227): 10 A

More info

▲
Automatic circuit breakers - It has a protected pole - Open and closed contact indicator - 10A - Breaking power: 3,000A - 1 module - Dark.
Installation Depth40 mm
Shot curveC
Number of poles (total)1
Number of protected poles1
Nominal current10 A
Nominal voltage230 V
Nominal insulation voltage Ui253 V
Assigned Voltage Peak Resistance (Uimp)4 kV
Type of voltageAC
frequency50-60 Hz
Power Limitation Class1
Flush mountingYes
Neutral Conductor CouplingYes
Additional equipment possibleNo
Width in number of modular spaces22.5
Protection Class (IP)IP20
Ambient temperature during operation-5-35 °C
Connectable conductor section1.5-2.5 mm²
Solid Connectable Conductor Section2.5-3 mm²
Explosion protectionNo
Width22.5 mm
Height45 mm
Depth50 mm
Impact resistanceIK04
Storage temperature-10-70 °C
Nominal Voltage110-230 V
Direction of the electricity supplyOn the back of the product
Display of markings on the connection terminalsNo
ColourBlack
RAL number9011
Halogen-freeYes
Connection MethodScrew-on terminal
Connection typeOther
Label Space/Print AreaNo
Type of mountingRecessed mounted (plaster)
