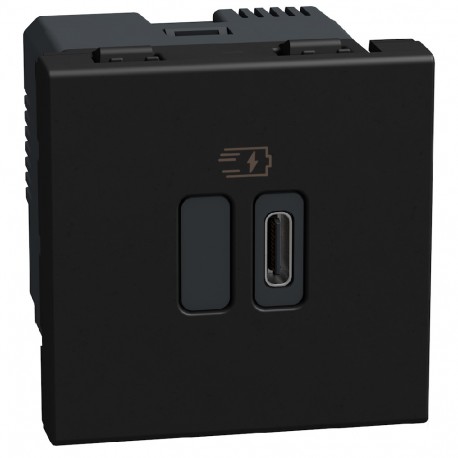

BTICINO YD4294C YD4294C BTCINO LW-BASE USB C 45W PD 2M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4294C BTCINO LW-BASE USB C 45W PD 2M DK

YD4294C

YD4294C

BTICINO

1 Pcs.

LW-BASE USB C 45W PD 2M DK Single USB Charger Base Light Now - Type C Power Delivery - 1 module - Dark

Automation > USB power supply
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino YD4294C BTCINO LW-BASE USB C 45W PD 2M DK is a USB charger configured to provide robust power delivery capabilities for demanding portable electronics within flush-mounted assemblies. These inserts are widely implemented in modern commercial and residential building management networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 220 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 43 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.074 W
  • Device width (EF008808): 45 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Black
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 9011

More info

▲
Universal USB Chargers - Type C Power Delivery - 3A - 5Vdc - 45W - Allow the charging of mobile phones, tablets, smartphones, MP3, MP4, laptops - Standby consumption 0.1 W - Class II TBTS - Complies with the EEC directive on the harmonization of the standard of charging of portable terminals and the reduction of mobile chargers - To be combined with stand and decorative plate - 1 module.
ModelOther
Number of USB-A ports0
Number of USB-C ports1
Operating voltage220-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-20 V
Power consumption0.074 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourBlack
RAL number9011
Device width45 mm
Device height45 mm
Device Depth41 mm
Min. depth of the recessed box43 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth33 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Power DeliveryYes
USB Power Output45
Nominal current0.8-0.8 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
