View larger
Images are for illustrative purposes only. Please refer to data sheet for details

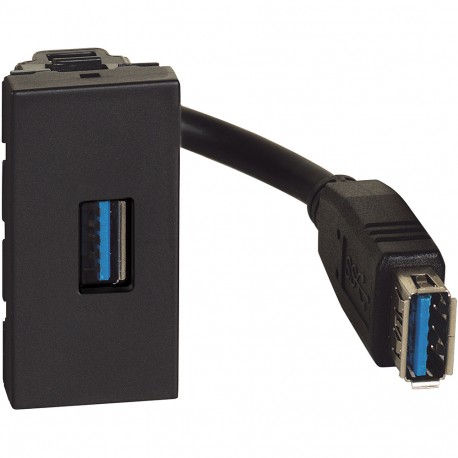

YD4285P BTCINO LW-DATABASE USB TO 1M DK
YD4285P
YD4285P
BTICINO
1 Pcs.
LW-DATABASE USB TO 1M DK
USB Type A Light Now Database -1 module - Dark
Automation > Data communication connection box copper (twisted pair)
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Pre-connectorized USB type A databases to connect USB devices (printer, scanner, external hard drive, etc.) - With 150mm cable and 2 female connectors - To be combined with support and decorative plate - 1 module.
| Surface mounting | No |
|---|---|
| Flush mounting | Yes |
| Duct Installation | No |
| Ground-mounted/underground box | No |
| Attachment Type | Lock in position |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| Connector Type | USB |
| With sockets/couplings | Yes |
| Suitable for the number of sockets/couplings | 1 |
| category | Other |
| Colour | Black |
| RAL number | 9011 |
| Connection Method | Other |
| Shielded plugs | No |
| Shielded housing | No |
| Separate grounding connection | No |
| With text box | No |
| Compatible with third-party covers | No |
| Separate cable strain relief | No |
| Shielding Connection Mount Type | none |
| Exit Address | Straight |
|---|---|
| With dust protection | No |
| With termination resistance | No |
| Protection Class (IP) | IP20 |
| Mechanical Coding | No |
| Color coding | No |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 37 mm |
| Number of modules (in case of modular design) | 1 |
| Installation Depth | 28.5 mm |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Display of markings on the connection terminals | No |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Type of cable entry feedthroughs | Not applicable |
| Cable Holder | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | No |
| With dust cover (EF003893) | No |
| Colour coding (EF007758) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| With label space (EF003456) | No |
| Shielded buses (EF002444) | No |
| Shielded housing (EF002445) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Other |
| Type of fastening (EF002442) | Engage (snap) |
| Floor box/subfloor mounted (EF003455) | No |
| Number of modules (module system) (EF009573) | 1 |
| With terminal resistor (EF005033) | No |
| Mechanical coding (EF002910) | No |
| RAL-number (EF000116) | 9011 |
| Type of connector (EF002935) | USB |
| Surface mounting (EF003681) | No |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| Device depth (EF008810) | 37 mm |
| Compatible with third-party covers (EF004592) | No |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | Other |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Black |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
