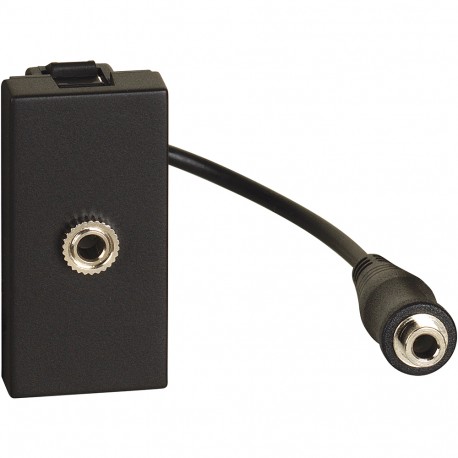

BTICINO YD4280 YD4280 BTCINO LW-BASE AUDIO JACK 3.5 1M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4280 BTCINO LW-BASE AUDIO JACK 3.5 1M DK

YD4280

YD4280

BTICINO

1 Pcs.

LW-BASE AUDIO JACK 3.5 1M DK Audio base Jack 3.5 Light Now - 1 module - Dark

Automation > Insert/cover for communication technology
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for compact multimedia routing, the YD4280 BTCINO LW-BASE AUDIO JACK 3.5 1M DK serves as a dedicated 3.5mm audio jack insert for wall-mounted control panels. These connection points allow users to easily interface personal audio gear with room sound systems in residential and corporate spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With dust cover (EF003893): No
  • Material (EF002169): Plastic
  • Shielded buses (EF002444): No
  • Surface finishing (EF006569): Matt
  • Shielded housing (EF002445): No
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Mounting method (EF000003): Flush mounted
  • Number of modules (module system) (EF009573): 1
  • Transparent (EF006243): Yes
  • With lighting (EF003829): No
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Luster terminal (EF003868): No
  • Surface protection (EF000139): Lacquered
  • With hinged lid (EF000117): No

More info

▲
Audio bases - 3.5 Jack connector - with 150mm cable - To connect audio/video devices. - 1 module - To be combined with support and decorative plate - Dark
Type of mountingBasic element with full cover plate, Recessed mounted (plaster)
Carrier RingNo
With dust protectionNo
With flip-top lidNo
Exit AddressStraight
Contact StyleFemale
Labeling fieldNo indication field
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentVarnishing
Surface FinishMate
ColourBlack
RAL number (similar)9011
TransparentYes
Attachment TypeLock in position
Number of modules (in case of modular design)1
With sockets/couplingsYes
Suitable for the number of sockets/couplings1
Isolated connectionsYes
With voltage reliefNo
Shielded plugsNo
Shielded housingNo
Spider ClampNo
With lightNo
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Device width22.5 mm
Device height45 mm
Device Depth35 mm
Min. depth of the recessed box40 mm
Installation Depth19 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
