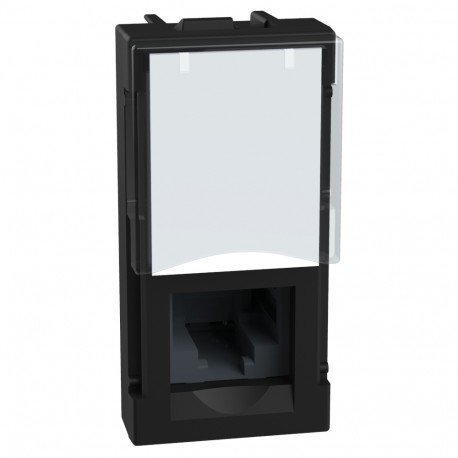

YD4279C6AS BTCINO LW-BASE RJ45 CAT6A STP 1M DK
YD4279C6AS
YD4279C6AS
BTICINO
1 Pcs.
Automation > Data communication connection box copper (twisted pair)
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The YD4279C6AS BTCINO LW-BASE RJ45 CAT6A STP 1M DK is an advanced shielded dual-connector communication module built for high-performance category 6a network channels. Technicians deploy this dark-finished unit within modular wiring frames to deliver secure, interference-resistant Ethernet connectivity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Duct installation: No
- With dust cover: Yes
- Colour coding: Yes
- Degree of protection (IP): IP20
- With label space: Yes
- Shielded buses: No
- Shielded housing: No
- Separate earthing connection: No
- Connection type: Insulation displacement connector
- Type of fastening: Engage (snap)
- Floor box/subfloor mounted: No
- Number of modules (module system): 1
- With terminal resistor: No
- Mechanical coding: No
- RAL-number: 9011
- Type of connector: 2x RJ45 8(8)
More info
▲| Surface mounting | No |
|---|---|
| Flush mounting | Yes |
| Duct Installation | No |
| Ground-mounted/underground box | No |
| Attachment Type | Lock in position |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| Connector Type | 2x RJ45 8(8) |
| With sockets/couplings | Yes |
| Suitable for the number of sockets/couplings | 1 |
| category | 6A (IEC) |
| Colour | Black |
| RAL number | 9011 |
| Connection Method | Insulation Displacement Connector |
| Shielded plugs | No |
| Shielded housing | No |
| Separate grounding connection | No |
| With text box | Yes |
| Compatible with third-party covers | No |
| Separate cable strain relief | No |
| Shielding Connection Mount Type | none |
| Exit Address | Straight |
|---|---|
| With dust protection | Yes |
| With termination resistance | No |
| Protection Class (IP) | IP20 |
| Mechanical Coding | No |
| Color coding | Yes |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 37 mm |
| Number of modules (in case of modular design) | 1 |
| Installation Depth | 25.5 mm |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Display of markings on the connection terminals | No |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Type of cable entry feedthroughs | Flexible to cut |
| Cable Holder | Cable glands |
