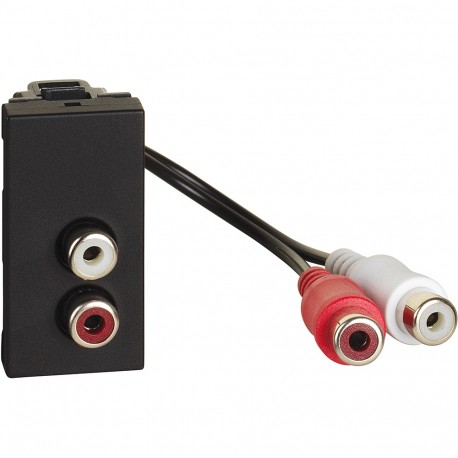

YD4269R BTCINO LW-BASE AUDIO RCAX2 1M DK
YD4269R
YD4269R
BTICINO
1 Pcs.
LW-BASE AUDIO RCAX2 1M DK
RCA Light Now double audio base - 1 module - Dark
Automation > Insert/cover for communication technology
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Audio bases - RCAx2 terminals - with 150mm cable - For any peripheral device such as a DVD player, camera, VCR, etc. - 1 module - To be combined with stand and decorative plate - Dark
| Type of mounting | Basic element with full cover plate, Recessed mounted (plaster) |
|---|---|
| Use | Girth |
| Carrier Ring | No |
| With dust protection | No |
| With flip-top lid | No |
| Exit Address | Straight |
| Contact Style | Female |
| Labeling field | No indication field |
| With printing | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Colour | Black |
| RAL number (similar) | 9011 |
| Transparent | Yes |
| Attachment Type | Lock in position |
| Number of modules (in case of modular design) | 1 |
|---|---|
| With sockets/couplings | Yes |
| Suitable for the number of sockets/couplings | 2 |
| Isolated connections | Yes |
| With voltage relief | No |
| Shielded plugs | No |
| Shielded housing | No |
| Spider Clamp | No |
| With light | No |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 33.5 mm |
| Min. depth of the recessed box | 36 mm |
| Installation Depth | 26 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | Yes |
| With lighting (EF003829) | No |
| Min. depth of built-in installation box (EF012278) | 36 mm |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Lacquered |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 9011 |
| Utilization (EF000133) | RCA / phono |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Contact type (EF001587) | Female |
| Device depth (EF008810) | 33.5 mm |
| With buses/couplings (EF005043) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Isolated connections (EF016888) | Yes |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Basic unit with full cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Black |
| Suitable for number of connectors (EF001579) | 2 |
