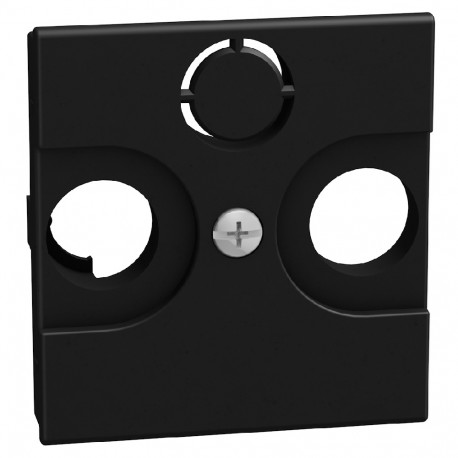

BTICINO YD4207 YD4207 BTCINO LW-FRONTAL TV-R-SAT 2M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4207 BTCINO LW-FRONTAL TV-R-SAT 2M DK

YD4207

YD4207

BTICINO

1 Pcs.

LW-FRONTAL TV-R-SAT 2M DK TV-R-SAT Universal Light Now Front - 2 modules - Dark

Automation > Insert/cover for communication technology
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The YD4207 BTCINO LW-FRONTAL TV-R-SAT 2M DK is a specialized multimedia connector cover designed to cleanly interface television, radio, and satellite signals in structured wiring layouts. Wall outlets of this category provide a centralized termination point for broadcast coaxial lines within residential and commercial architectural spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With dust cover (EF003893): No
  • Material (EF002169): Plastic
  • Shielded buses (EF002444): No
  • Surface finishing (EF006569): Matt
  • Shielded housing (EF002445): No
  • Type of fastening (EF002442): Mounting with screw
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Mounting method (EF000003): Flush mounted
  • With imprint (EF004048): No
  • Number of modules (module system) (EF009573): 2
  • Transparent (EF006243): No
  • With lighting (EF003829): No
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Luster terminal (EF003868): No
  • Surface protection (EF000139): Lacquered

More info

▲
Universal television front - Allows installation in the main television bases on the market - central fixing by screw Front TV-R-SAT - 2 modules - Dark.
Type of mountingCenter cover plate, Recessed mounted (plaster)
UseTV/satellite diplexer
Carrier RingNo
With dust protectionNo
With flip-top lidNo
Exit AddressStraight
Contact Stylemale
Labeling fieldNo indication field
With printingNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentYes
Surface treatmentVarnishing
Surface FinishMate
ColourBlack
RAL number (similar)9011
TransparentNo
Attachment TypeScrew mounting
Number of modules (in case of modular design)2
With sockets/couplingsNo
Isolated connectionsNo
With voltage reliefNo
Shielded plugsNo
Shielded housingNo
Spider ClampNo
With lightNo
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Device width45 mm
Device height48 mm
Device Depth10.5 mm
Min. depth of the recessed box40 mm
Installation Depth30 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
