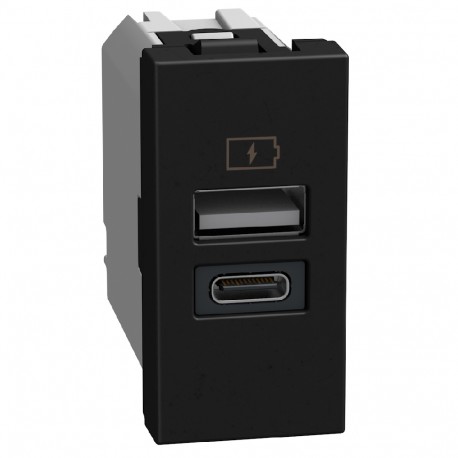

YD4191AC BTCINO LW-BASE USB A+C 3A 15W 1M DK
YD4191AC
YD4191AC
BTICINO
1 Pcs.
Automation > USB power supply
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Deploying a YD4191AC BTCINO LW-BASE USB A+C 3A 15W 1M DK permits the installation of a compact flush-mounted power supply unit with combined USB ports. Integrated charging mechanisms are widely deployed in structured electrical layouts to supply efficient DC power for modern electronics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Flush mounted
- Suitable for degree of protection (IP) (EF006755): IP40
- Connection type (EF000124): Screwed terminal
- Operating voltage (EF003983): 100 V
- Device depth (EF008810): 41 mm
- Impact strength (EF004293): IK04
- Anti-bacterial treatment (EF023790): No
- Number of ports USB-C (EF017049): 1
- Min. depth of built-in installation box (EF012278): 43 mm
- Output voltage (EF003933): 5 V
- Power consumption (EF000346): 0.091 W
- Device width (EF008808): 22.5 mm
- Device height (EF008809): 45 mm
- Colour (EF000007): Black
- Number of ports USB-A (EF000997): 1
- RAL-number (EF000116): 9011
More info
▲| Model | Other |
|---|---|
| Number of USB-A ports | 1 |
| Number of USB-C ports | 1 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-5 V |
| Power consumption | 0.091 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | Black |
| RAL number | 9011 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 43 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 33 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| USB Power Output | 15 |
| Nominal current | 0.5-0.5 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
