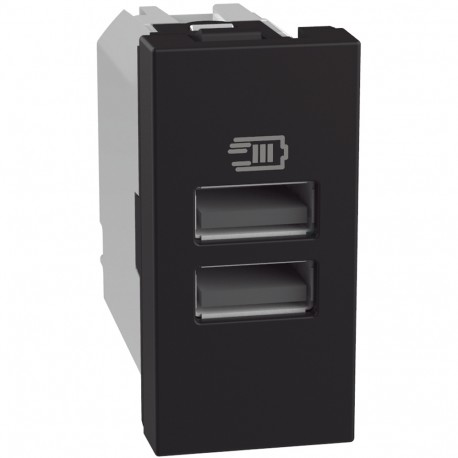

YD4191AA BTCINO LW-BASE USB A+A 3A 15W 1M DK
YD4191AA
YD4191AA
BTICINO
1 Pcs.
Automation > USB power supply
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The YD4191AA BTCINO LW-BASE USB A+A 3A 15W 1M DK from Bticino is a flush-mounted USB charger designed to supply direct low-voltage power to mobile equipment in built-in installation enclosures. Electrical designers specify these components to maintain clean aesthetics while offering accessible charging points. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method: Flush mounted
- Suitable for degree of protection (IP): IP40
- Connection type: Screwed terminal
- Operating voltage: 100 V
- Device depth: 41 mm
- Impact strength: IK04
- Anti-bacterial treatment: No
- Number of ports USB-C: 0
- Min. depth of built-in installation box: 43 mm
- Output voltage: 5 V
- Power consumption: 0.083 W
- Device width: 22.5 mm
- Device height: 45 mm
- Colour: Black
- Number of ports USB-A: 2
- RAL-number: 9011
More info
▲| Model | Other |
|---|---|
| Number of USB-A ports | 2 |
| Number of USB-C ports | 0 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-5 V |
| Power consumption | 0.083 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | Black |
| RAL number | 9011 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 43 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 33 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| USB Power Output | 15 |
| Nominal current | 0.5-0.5 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
