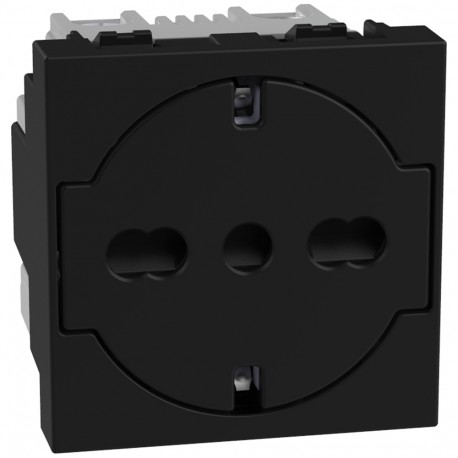

BTICINO YD4140A16F YD4140A16F BTCINO LW-BASE 2P+T/IT 116A 2M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4140A16F BTCINO LW-BASE 2P+T/IT 116A 2M DK

YD4140A16F

YD4140A16F

BTICINO

10 Pcs.

LW-BASE 2P+T/IT 116A 2M DK LW-BASE SCH/IT 2P+T 16A 2M DK Base 2P+T + Italian standard Light Now - 16A/250V - Dark - 2 modules

Automation > Socket outlet
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Bticino YD4140A16F is a flush-mounted socket outlet engineered for standard electrical distribution and wiring device installations. These modular receptacles provide secure mechanical and electrical interfaces for everyday appliance power cords. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 43.5 mm

More info

▲
2P+T standard Italian + German standard 2P+T flush current base - 10A/16A - 250 Vac - Distance between alveoli between 19mm and 26mm - Screw connection - With protective shutters - When inserting the key, the surface of the base slides inside the housing; returns to its initial position when removing the plug - 2 modules - To be combined with support and decorative plate - Dark.
ModelItalian type bypass
Neutral Conductor CouplingNo
Protective contactRound
Number of active (round) contacts1
Number of active contacts (drawings)0
Number of active contacts (square)0
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of sockets1
Phase-separated power outletsNo
Number of modules (in case of modular design)2
Number of interchangeable sockets0
Number of phases1
Printing/Markingnone
Connection MethodScrew-on terminal
With flip-top lidNo
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourBlack
RAL number (similar)9011
Metallic colorNo
TransparentYes
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplynone
Attachment TypeHemming
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
With loop functionYes
Number of loops1
With on/off switchNo
Switching element colorBlack
Rotated center insertNo
Nominal intensity16 A
Nominal Voltage250 V
Degree of protection (IP), plug connectedIP20
frequency50-60 Hz
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Device width45 mm
Device height45 mm
Device Depth41.5 mm
Min. depth of the recessed box43.5 mm
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDENo
Complies with UK Building Regulations, Part MNo
Installation Depth33.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Power DeliveryNo
Display of markings on the connection terminalsNo
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Cable HolderCable glands
Connected ObjectNo
App download platformNot applicable
Programming mediumNot applicable
With voice commandNo
ProgrammableNo
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxNo
Product usage functionPower Distribution
