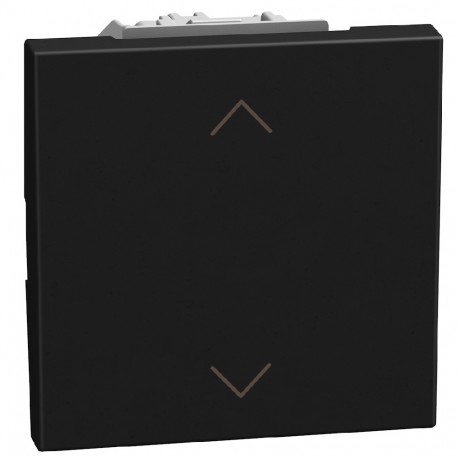

YD4037NM2 BTCINO LW-PULS DOUBLE LOCK 10A 2M DK
YD4037NM2
YD4037NM2
BTICINO
10 Pcs.
Automation > Venetian blind switch/-push button
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The YD4037NM2 BTCINO LW-PULS DOUBLE LOCK 10A 2M DK is a specialized push-button switch designed for secure momentary activation of motorized systems and locking controls. Such components provide dependable user interfaces in modern electrical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mechanical controllable (EF005993): Yes
- Label space/information surface (EF001035): No
- Material (EF002169): Plastic
- Surface finishing (EF006569): Matt
- Type of fastening (EF002442): Engage (snap); Halogen free (EF000025): Yes
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Flush mounted
- Connection type (EF000124): Screwed terminal
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 1
- Transparent (EF006243): Yes
- Compatible with Apple HomeKit (EF014925): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of poles (EF001391): 1
More info
▲| For Venetian blinds | Yes |
|---|---|
| For blinds | Yes |
| For awnings | No |
| Type of mounting | Module for system interruption program, Recessed mounted (plaster) |
| Model | 1-pole push button |
| Number of poles | 1 |
| Type of operation | Seesaw |
| With electric lock | No |
| With mechanical latch | No |
| Mechanically Driven | Yes |
| Electronically operated | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Attachment Type | Lock in position |
| Connection Method | Screw-on terminal |
| Colour | Black |
| RAL number (similar) | 9011 |
| Transparent | Yes |
| Label Space/Print Area | No |
| Suitable for protection grade (IP) | IP20 |
| Nominal current | 10 A |
| Nominal Voltage | 250 V |
| Number of buttons | 1 |
| Number of modules (in case of modular design) | 1 |
|---|---|
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 36.5 mm |
| Installation Depth | 28.5 mm |
| Min. depth of the recessed box | 38.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Lighting Type | Not included |
| Display of markings on the connection terminals | No |
| Antibacterial treatment | No |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Contains battery and/or accumulator | No |
| Battery or accumulator (Pack1) | Not applicable |
| Battery or accumulator (Pack2) | Not applicable |
