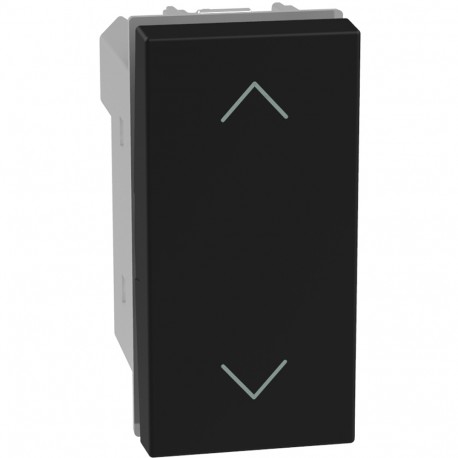

YD4037N BTCINO LW-PULS DOUBLE LOCK 10A 1M DK
YD4037N
YD4037N
BTICINO
10 Pcs.
LW-PULS DOUBLE LOCK 10A 1M DK
Double push button for Light Now blinds - 10A - 250V~ - interlocked push button - 1 module - dark
Double push button for Light Now-10A-250V blinds~-interblocked-1 module-dark
Automation > Venetian blind switch/-push button
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Shutter mechanisms - Double dark push button with mechanical lock - 10 A - 250 Vac - One press to activate the maneuver and when released it stops - To be combined with support and decorative plate - 1 module.
| For Venetian blinds | Yes |
|---|---|
| For blinds | Yes |
| For awnings | No |
| Type of mounting | Module for system interruption program, Recessed mounted (plaster) |
| Model | 1-pole push button |
| Number of poles | 1 |
| Type of operation | Seesaw |
| With electric lock | No |
| With mechanical latch | No |
| Mechanically Driven | Yes |
| Electronically operated | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Attachment Type | Lock in position |
| Connection Method | Screw-on terminal |
| Colour | Black |
| RAL number (similar) | 9011 |
| Transparent | Yes |
| Label Space/Print Area | No |
| Suitable for protection grade (IP) | IP20 |
| Nominal current | 10 A |
| Nominal Voltage | 250 V |
| Number of buttons | 1 |
| Number of modules (in case of modular design) | 1 |
|---|---|
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 36.5 mm |
| Installation Depth | 28.5 mm |
| Min. depth of the recessed box | 38.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Lighting Type | Not included |
| Display of markings on the connection terminals | No |
| Antibacterial treatment | No |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Contains battery and/or accumulator | No |
| Battery or accumulator (Pack1) | Not applicable |
| Battery or accumulator (Pack2) | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Mechanical controllable (EF005993) | Yes |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Connection type (EF000124) | Screwed terminal |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | Yes |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of poles (EF001391) | 1 |
| With mechanical locking (EF016711) | No |
| Min. depth of built-in installation box (EF012278) | 38.5 mm |
| With electrical locking (EF016710) | No |
| For roller blinds (EF002712) | Yes |
| For awnings (EF002713) | No |
| Surface protection (EF000139) | Lacquered |
| Built-in depth (EF000218) | 28.5 mm |
| Number of buttons (EF003144) | 1 |
| RAL-number (similar) (EF003882) | 9011 |
| Model (EF000010) | 1-pole push button |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 36.5 mm |
| Electronic controllable (EF006570) | No |
| For venetian blinds (EF016443) | Yes |
| IFTTT support available (EF011072) | No |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| Device width (EF008808) | 22.5 mm |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Black |
| Method of operation (EF000006) | Rocker |
