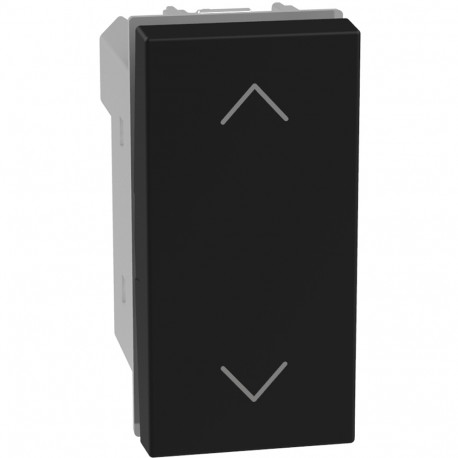

BTICINO YD4027N YD4027N BTCINO LW-CONM DOUBLE 10AX 1M DK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YD4027N BTCINO LW-CONM DOUBLE 10AX 1M DK

YD4027N

YD4027N

BTICINO

1 Pcs.

LW-CONM DOUBLE 10AX 1M DK Double switch for Light Now blinds - 1 module - Dark

Automation > Venetian blind switch/-push button
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A YD4027N BTCINO LW-CONM DOUBLE 10AX 1M DK is a dual-way switch module utilized in electrical distribution and wall assemblies to route circuits from multiple control points. Such components serve standard lighting and auxiliary power distribution roles in modern architectural environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mechanical controllable: Yes
  • Label space/information surface: No
  • Material: Plastic
  • Surface finishing: Matt
  • Type of fastening: Engage (snap)
  • Halogen free: Yes
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Connection type: Screwed terminal
  • Nominal voltage: 250 V
  • Number of modules (module system): 1
  • Transparent: Yes
  • Compatible with Apple HomeKit: No
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Number of poles: 1

More info

▲
Shutter mechanisms - Double switch - 10 AX-250 Vac - One press to activate the maneuver, another press in the center to stop it - not illuminable - To be combined with support and decorative plate - 1 module.
For Venetian blindsYes
For blindsYes
For awningsNo
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Model1-pole switch
Number of poles1
Type of operationOther
With electric lockNo
With mechanical latchNo
Mechanically DrivenYes
Electronically operatedNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Attachment TypeLock in position
Connection MethodScrew-on terminal
ColourBlack
RAL number (similar)9011
TransparentYes
Label Space/Print AreaNo
Suitable for protection grade (IP)IP20
Nominal current10 A
Nominal Voltage250 V
Number of buttons1
Number of modules (in case of modular design)1
Device width22.5 mm
Device height45 mm
Device Depth36.5 mm
Installation Depth28.5 mm
Min. depth of the recessed box38.5 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Lighting TypeNot included
Display of markings on the connection terminalsNo
Antibacterial treatmentNo
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Contains battery and/or accumulatorNo
Battery or accumulator (Pack1)Not applicable
Battery or accumulator (Pack2)Not applicable

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
