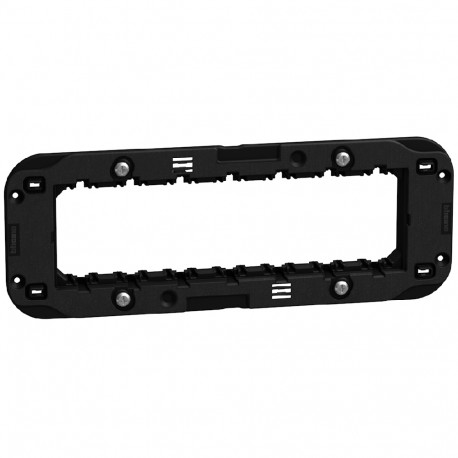

BTICINO Y4707 Y4707 BTCINO LW-RECTANG SUPPORT. 7M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Y4707 BTCINO LW-RECTANG SUPPORT. 7M

Y4707

Y4707

BTICINO

1 Pcs.

LW-RECTANG SUPPORT. 7M Light Now screw holder 7 modules (rectangular format)

Automation > Holder for modular domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Y4707 BTCINO LW-RECTANG SUPPORT. 7M is a wide rectangular support frame engineered to hold up to seven modular wiring devices in standard wall installations. Support brackets organize complex switching arrays into cohesive wall assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): No
  • With nail (EF000370): No
  • Material (EF002169): Plastic
  • Mounting method of the module inserts (EF009577): Front
  • Material quality (EF001257): Thermoplastic
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with screw
  • Suitable for mounting in round junction box 60 mm (EF009579): No
  • With screws (EF005066): Yes
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 1
  • Number of modules horizontal (module system) (EF009571): 7
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Untreated
  • Flush-mounted installation (EF007517): No

More info

▲
Support with screws for mechanisms and plates Light Now - Bi-material: PC plastic reinforced with a metal insert - 7 modules (rectangular format)
ModelOther
Attachment TypeScrew mounting
With clovesNo
Depth15.5 mm
Height76 mm
Number of modules horizontally (in case of modular design)7
Number of vertical modules (in case of modular design)1
With built-in installation boxNo
With screwsYes
Width204 mm
Flush mountingNo
Suitable for underfloor ductingNo
Suitable for device installation conduitNo
Assembly DirectionHorizontal and vertical
MaterialPlastic
Material qualityThermoplastic
Surface treatmentNo treatment
Suitable for 35 mm DIN rail mountingNo
Type of assembly of the mechanismsFront
Suitable for mounting in a round flush boxNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
