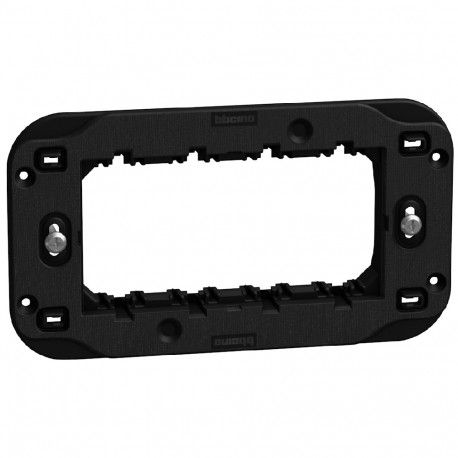

Y4704 BTCINO LW-RECTANG SUPPORT. 4M
Y4704
Y4704
BTICINO
1 Pcs.
Automation > Holder for modular domestic switching devices
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Bticino Y4704 LW-RECTANG SUPPORT. 4M is a rectangular mounting support used to house four modular electrical devices within standard wall enclosures. The frame guarantees structural stability for switches, pushbuttons, and data outlets during room fit-outs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With built-in installation box: No
- With nail: No
- Material: Plastic
- Mounting method of the module inserts: Front
- Material quality: Thermoplastic
- Suitable for subfloor installation duct box: No
- Mounting method: Mounting with screw
- Suitable for mounting in round junction box 60 mm: No
- With screws: Yes
- Suitable for mounting on DIN-rail 35 mm: No
- Suitable for wall duct: No
- Number of modules vertical (module system): 1
- Number of modules horizontal (module system): 4
- Mounting direction: Horizontal and vertical
- Surface protection: Untreated
- Flush-mounted installation: No
More info
▲| Model | Other |
|---|---|
| Attachment Type | Screw mounting |
| With cloves | No |
| Depth | 15.5 mm |
| Height | 76 mm |
| Number of modules horizontally (in case of modular design) | 4 |
| Number of vertical modules (in case of modular design) | 1 |
| With built-in installation box | No |
| With screws | Yes |
| Width | 135.5 mm |
| Flush mounting | No |
|---|---|
| Suitable for underfloor ducting | No |
| Suitable for device installation conduit | No |
| Assembly Direction | Horizontal and vertical |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface treatment | No treatment |
| Suitable for 35 mm DIN rail mounting | No |
| Type of assembly of the mechanisms | Front |
| Suitable for mounting in a round flush box | No |
