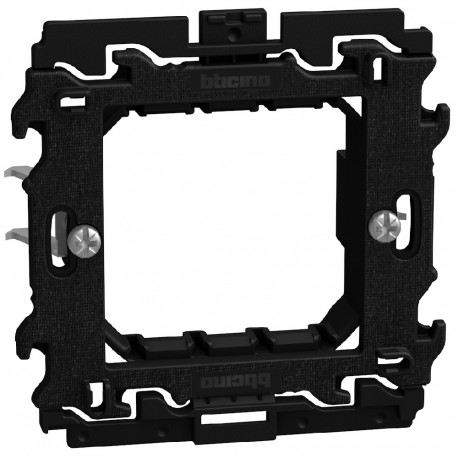

BTICINO Y4702 Y4702 BTCINO LW-SUPPORT UNIV. 2M SCREWS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Y4702 BTCINO LW-SUPPORT UNIV. 2M SCREWS

Y4702

Y4702

BTICINO

1 Pcs.

LW-SUPPORT UNIV. 2M SCREWS Light Now Claw Holder 2 Modules Light Now 2 module screw holder

Automation > Holder for modular domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Y4702 BTCINO LW-SUPPORT UNIV. 2M SCREWS from Bticino acts as a universal thermoplastic support frame for mounting two-module wiring devices. Such frames provide the precise structural alignment required for switches and sockets within standard electrical boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): No
  • With nail (EF000370): No
  • Material (EF002169): Plastic
  • Mounting method of the module inserts (EF009577): Front
  • Material quality (EF001257): Thermoplastic
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with screw
  • Suitable for mounting in round junction box 60 mm (EF009579): Yes
  • With screws (EF005066): Yes
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 1
  • Number of modules horizontal (module system) (EF009571): 2
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Untreated
  • Flush-mounted installation (EF007517): No

More info

▲
Support with claws for mechanisms and plates Light Now - Fiberglass reinforced PC plastic - 2 modules.
ModelOther
Attachment TypeHook mounting
With clovesNo
Depth19 mm
Height76 mm
Number of modules horizontally (in case of modular design)2
Number of vertical modules (in case of modular design)1
With built-in installation boxNo
With screwsNo
Width76 mm
Flush mountingNo
Suitable for underfloor ductingNo
Suitable for device installation conduitNo
Assembly DirectionHorizontal and vertical
MaterialPlastic
Material qualityThermoplastic
Surface treatmentNo treatment
Suitable for 35 mm DIN rail mountingNo
Type of assembly of the mechanismsFront
Suitable for mounting in a round flush boxYes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
