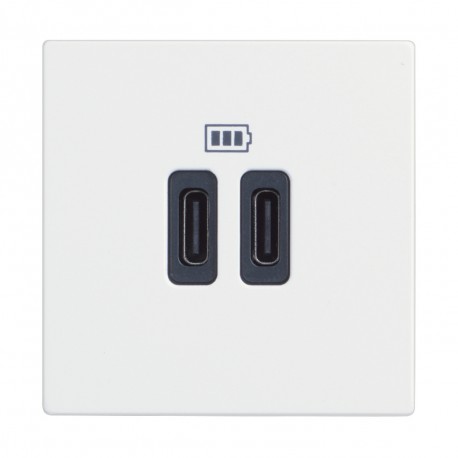

BTICINO RW4286C2 RW4286C2 BTCINO CL-BASE USB C+C 3A/5V 2M BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RW4286C2 BTCINO CL-BASE USB C+C 3A/5V 2M BLAN

RW4286C2

RW4286C2

BTICINO

1 Pcs.

CL-BASE USB C+C 3A/5V 2M BLAN Dual USB charger base Classia - Type C+C - White - 2 modules Classia Double USB Charger Base - Type C+C - White - 2mod

Automation > USB power supply
classia mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The RW4286C2 BTCINO CL-BASE USB C+C 3A/5V 2M BLAN functions as a dual-port low-voltage charging insert fitted into wall boxes to power multiple personal electronics. Such hardware is commonly deployed in shared workspaces and educational institutions to accommodate contemporary device connection standards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mounting method: Flush mounted
  • Suitable for degree of protection (IP): IP40
  • Connection type: Screwed terminal
  • Operating voltage: 100 V
  • Device depth: 42.3 mm
  • Impact strength: IK04
  • Anti-bacterial treatment: No
  • Number of ports USB-C: 2
  • Min. depth of built-in installation box: 40 mm
  • Output voltage: 5 V
  • Power consumption: 0.064 W
  • Device width: 44.7 mm
  • Device height: 45 mm
  • Colour: White
  • Number of ports USB-A: 0
  • RAL-number: 9003

More info

▲

Product features

Universal USB charging bases - Type C+C - 3 A - 5 V - 230 Vac - Compliant with IEC 62684-2011-01 - Allow fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Standby consumption < 0.1 W - Class II TBTS - In accordance with the EEC Directive on the harmonization of the standard of recharging portable terminals and the reduction of mobile chargers - Supplied without cable - 2 modules - To be combined with stand and trim plate - White

General features

Classia - USB charger bases

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
