View larger
Images are for illustrative purposes only. Please refer to data sheet for details

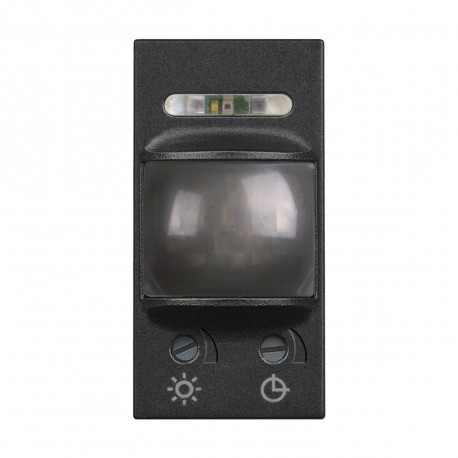

RG4431 BTCINO CL-SENSOR IR 2A 1M DARK
RG4431
RG4431
BTICINO
1 Pcs.
CL-SENSOR IR 2A 1M DARK
Classia IR circuit breaker - 3 wires - Dark - 1 module
Classia IR Automatic Switch - 3 wires - Dark - 1mod
Automation > Movement sensor complete
classia mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Ecodetectors - Switch with passive IR motion sensor - 3 wires - Checks the natural luminosity continuously and not only at the time of detection - Powers admitted according to the type of lamp: - LEDs and fluocompacts : 50 W, fluo tubes with ferromagnetic or electronic transformer: 460 W, halogen and incandescent : 460 W, motors : 2 A cos Phi 0,5 - Twilight circuit of variable threshold with possibility of exclusion - Adjustable timing from 30 seconds to 10 minutes - 1 module - To be combined with bracket and trim plate - DarkGeneral features
Classia - ecodetectors| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | No |
| Staircase light controller (EF001098) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 0.5 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 105 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| RAL-number (similar) (EF003882) | 7015 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Max. duty cycle (EF006590) | 10 min |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK00 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 42.7 mm |
| Temperature (EF001731) | 5 °C |
| Substation input (EF003876) | No |
| Colour (EF000007) | Black |
| Width (EF000008) | 22.3 mm |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 460 W |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Untreated |
| Diameter reach on floor (EF003843) | 3 m |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 32.9 mm |
| Remote operation (EF003848) | No |
| Constant light control (EF003863) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 6 m |
| Max. reach frontally (EF001322) | 6 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | No |
| Teach-function for response value luminosity (EF003898) | No |
| HVAC-control (EF003858) | No |
