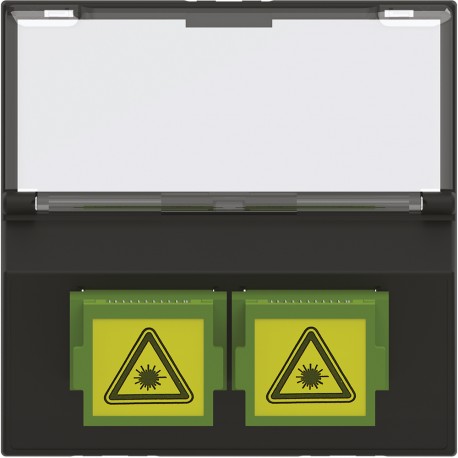

BTICINO RG4268SC RG4268SC BTCINO CL-BASE FO 2XSC/APC 2M DARK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RG4268SC BTCINO CL-BASE FO 2XSC/APC 2M DARK

RG4268SC

RG4268SC

BTICINO

1 Pcs.

CL-BASE FO 2XSC/APC 2M DARK Fiber Optic Cable Docking Station - SC/APC - 2 module - Dark

Automation > Data communication connection box fibre optic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino RG4268SC CL-base fo 2xsc/apc 2m dark is a specialized floor box optical outlet configured to support fiber optic connectivity within subfloor wiring layouts. Such modules ensure robust signal distribution and protection for optical fibers in commercial environments. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Duct installation (EF002440): No
  • Dust protection cap (EF002452): Hinged lid
  • Surface mounting (EF003681): No
  • With label space (EF003456): Yes
  • Centre plate (EF001045): No
  • Wire stock (EF005424): No
  • Type of fastening (EF002442): Engage (snap)
  • Floor box/subfloor mounted (EF003455): Yes
  • Device depth (EF008810): 29.3 mm
  • Number of buses/couplings (EF004395): 0
  • With cover frame (EF003807): No
  • Device width (EF008808): 45.05 mm
  • Outlet direction (EF000323): Downwards
  • With bus/coupling (EF001577): No
  • Device height (EF008809): 45.05 mm
  • Colour (EF000007): Grey

More info

▲

Overview

Fiber optic socket with SC/APC simplex connector. Used to connect 2 fibers (equipped with connectors)

description
Classia - bases for fiber optic data transmission

specifications

Surface mountingNo
Flush mountingYes
Duct InstallationNo
Ground-mounted/underground boxYes
Attachment TypeLock in position
With socket/couplingNo
Number of plugs/couplings0
Connector TypeSC
ColourGrey
Center PlateNo
With cover frameNo
With text boxYes
Cable strain reliefNo
Reel ReservationNo
Exit AddressLower position
Dust protectionHinged lid
Device width45.05 mm
Device Depth29.3 mm
Device height45.05 mm
Impact resistanceIK04
Protection Class (IP)IP21
Operating Temperature-40-85 °C
Storage temperature-40-85 °C
Antibacterial treatmentNo
Label Space/Print AreaYes
