View larger
Images are for illustrative purposes only. Please refer to data sheet for details

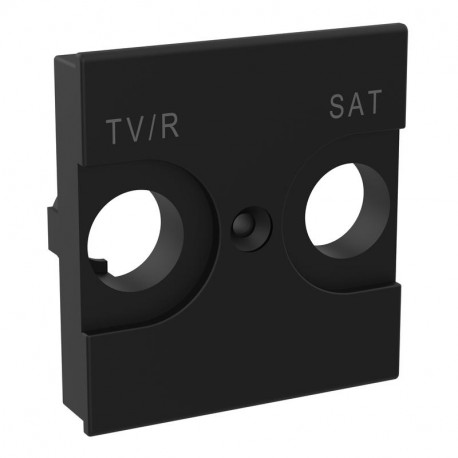

RG4212 BTCINO CL-FRONT TV/R-SAT 2M DARK
RG4212
RG4212
BTICINO
1 Pcs.
CL-FRONT TV/R-SAT 2M DARK
Classia Universal Front for TV/R-SAT TV Bases - Dark - 2 Modules
Universal Classia front for TV/R-SAT TV bases - Dark - 2mod
Automation > Insert/cover for communication technology
classia mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Television bases - Classia universal front for TV/R-SAT television bases - Allow installation in the main television bases on the market - Fixing by the central part by screw - 2 modules - DarkGeneral features
Classia - television bases| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Mounting with screw |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Other |
| With imprint (EF004048) | Yes |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| With lighting (EF003829) | No |
| Min. depth of built-in installation box (EF012278) | 35 mm |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Untreated |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | Yes |
| RAL-number (similar) (EF003882) | 9011 |
| Utilization (EF000133) | Other |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 10 mm |
| With buses/couplings (EF005043) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK00 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Black |
| Suitable for number of connectors (EF001579) | 2 |
