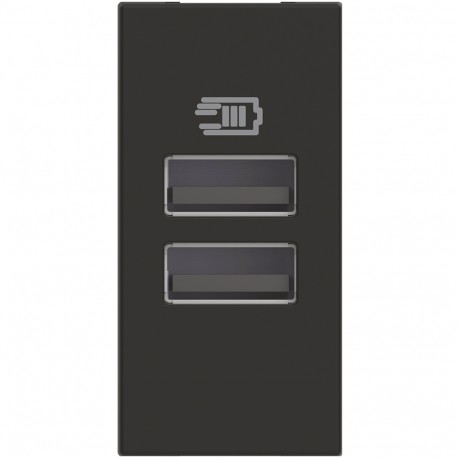

BTICINO RG4191AA RG4191AA BTCINO CL-BASE USB A+A 3A/5V 1M DARK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RG4191AA BTCINO CL-BASE USB A+A 3A/5V 1M DARK

RG4191AA

RG4191AA

BTICINO

1 Pcs.

CL-BASE USB A+A 3A/5V 1M DARK Classia Dual USB Charger Base - Type A+A - Dark - 1 module Classia USB Double Charger Base - Type A+A - Dark - 1mod

Automation > USB power supply

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The RG4191AA BTCINO CL-BASE USB A+A 3A/5V 1M DARK produced by Bticino is a slim, single-module USB charging outlet designed for discrete electrical installations. These modules fit into narrow modular frames to provide efficient power conversion for handheld equipment in commercial or residential areas. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.083 W
  • Device width (EF008808): 22.5 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Black
  • Number of ports USB-A (EF000997): 2
  • RAL-number (EF000116): 9011

More info

▲

Product features

USB charger bases A+A - 3A/5V - 15W - Allows fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Standby consumption0.1 W - Class II TBTS - Supplied without cable - 1 module - To be combined with stand and plate - Dark

General features

Classia - USB charger bases

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
