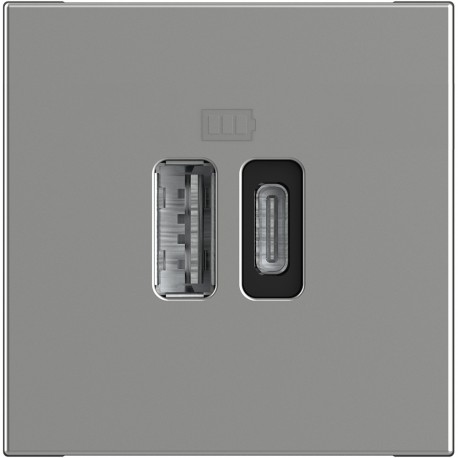

BTICINO RA4287C2 RA4287C2 BTCINO CL-BASE USB A+C 3A/5V 2M ALUM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RA4287C2 BTCINO CL-BASE USB A+C 3A/5V 2M ALUM

RA4287C2

RA4287C2

BTICINO

1 Pcs.

CL-BASE USB A+C 3A/5V 2M ALUM Base USB charger Classia - Type A+C - Aluminum - 2 modules Classia USB Double Charger Base - Type A+C - Aluminum - 2mod

Automation > USB power supply
classia mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An RA4287C2 BTCINO CL-BASE USB A+C 3A/5V 2M ALUM is an integrated USB charging interface built to fit standard flush installation enclosures in modern electrical systems. These outlets supply convenient direct-wire power conversion for handheld peripheral devices across commercial and residential spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 42.3 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.066 W
  • Device width (EF008808): 44.7 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Aluminium
  • Number of ports USB-A (EF000997): 1
  • RAL-number (EF000116): 7035

More info

▲

Product features

Usb universal charger bases - Type A+C - 3 A - 5 V - 230 CA - Conforms to IEC 62684-2011-01 - Allow fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Consumption at rest < 0.1 W - Class II TBTS - In accordance with the EEC directive on the harmonization of the standard for recharging portable terminals and the reduction of mobile chargers - Supplied without cable - 2 modules - To be combined with support and beautifying plate - Aluminium

General features

Classia - USB charger bases
