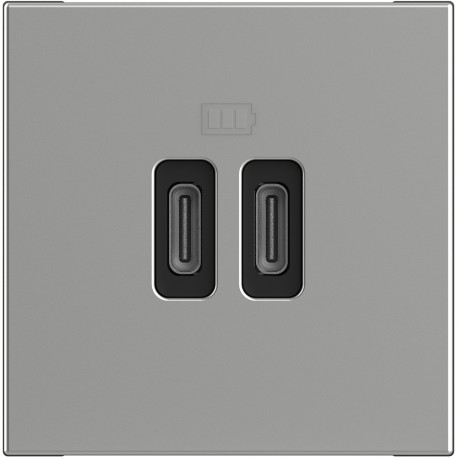

BTICINO RA4286C2 RA4286C2 BTCINO CL-BASE USB C+C 3A/5V 2M ALUM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RA4286C2 BTCINO CL-BASE USB C+C 3A/5V 2M ALUM

RA4286C2

RA4286C2

BTICINO

1 Pcs.

CL-BASE USB C+C 3A/5V 2M ALUM Base usb charger classia - Type C+C - Aluminum - 2 modules Classia USB Double Charger Base - Type C+C - Aluminum - 2mod

Automation > USB power supply
classia mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The RA4286C2 BTCINO CL-BASE USB C+C 3A/5V 2M ALUM manufactured by Bticino functions as a flush-mounted dual-port USB-C charging interface. These mechanisms are routinely installed in architectural paneling and wall boxes to supply safe, direct power to handheld electronic devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 42.3 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 2
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.064 W
  • Device width (EF008808): 44.7 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Aluminium
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 7035

More info

▲

Product features

Usb universal charger bases - Type C+C - 3 A - 5 V - 230 CA - Conforms to IEC 62684-2011-01 - Allow fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Consumption at rest < 0.1 W - Class II TBTS - In accordance with the EEC directive on the harmonization of the standard for recharging portable terminals and the reduction of mobile chargers - Supplied without cable - 2 modules - To be combined with support and embellishing plate - Aluminium

General features

Classia - USB charger bases
