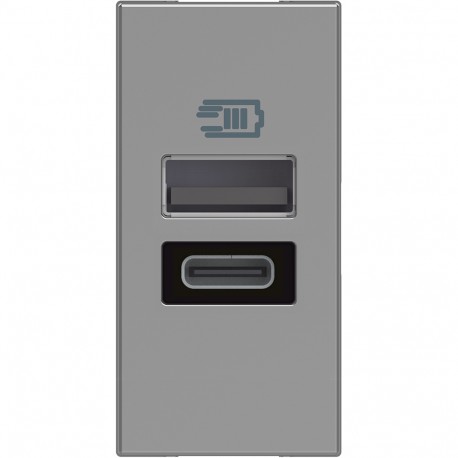

BTICINO RA4191AC RA4191AC BTCINO CL-BASE USB A+C 3A/5V 1M ALUM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RA4191AC BTCINO CL-BASE USB A+C 3A/5V 1M ALUM

RA4191AC

RA4191AC

BTICINO

1 Pcs.

CL-BASE USB A+C 3A/5V 1M ALUM Classia Dual USB Charger Base - Type A+C - Aluminium - 1 module Classia USB Double Charger Base - Type A+C - Aluminum - 1mod

Automation > USB power supply

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An RA4191AC BTCINO CL-BASE USB A+C 3A/5V 1M ALUM is a modular flush-mounted USB charging outlet outfitted with both Type-A and Type-C connection ports. This hardware enables streamlined power distribution for various consumer electronics directly from standard wall installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.091 W
  • Device width (EF008808): 22.5 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Aluminium
  • Number of ports USB-A (EF000997): 1
  • RAL-number (EF000116): 7035

More info

▲

Product features

USB charger bases A+C - 3A/5V - 15W - Allows fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Standby consumption0.1 W - Class II TBTS - Supplied without cable - 1 module - To be combined with bracket and plate - Aluminium

General features

Classia - USB charger bases
