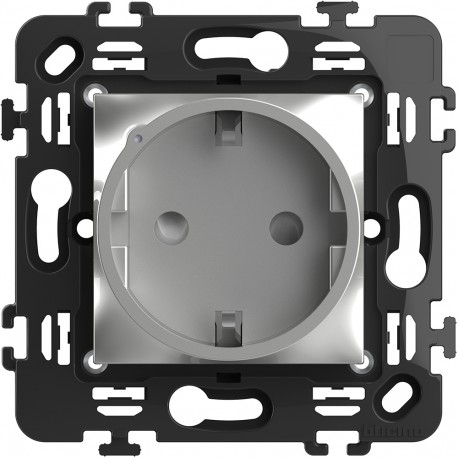

BTICINO RA4141AC RA4141AC BTCINO CLwN-BASE 2P+T ALUM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RA4141AC BTCINO CLwN-BASE 2P+T ALUM

RA4141AC

RA4141AC

BTICINO

1 Pcs.

CLwN-BASE 2P+T ALUM The connected power base is used to control electrical equipment remotely - it can be associated with one or more wireless lighting commands for remote control - it allows you to control your consumption and receive notifications through the Home + Legrand Control APP - requires the installation of the Starter Pack - aluminum Connected socket (Schuko standard) Classia w/Netatmo - Aluminium

Automation > Socket outlet
CLASSIA WITH NETATMO

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The RA4141AC BTCINO CLwN-BASE 2P+T ALUM by Bticino combines smart automation readiness with an aluminum finish for contemporary electrical installations. Smart-enabled sockets allow seamless integration into automated home and building management networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 240 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): Yes
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): Yes
  • Compatible with Google Assistant (EF014926): Yes
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm
  • With hinged lid (EF000117): No

More info

▲

Product features

The connected current base allows to measure the instantaneous and accumulated consumption - It is compatible with all types of electrical equipment, especially household appliances - It incorporates an additional protection incorporated in case of overloads greater than 16 A - It allows the configuration of the sending of notifications (breakdown, excess consumption, etc.) - It uses the same wiring (phase and neutral) as a traditional current base - It can be controlled from one or several wireless lighting commands and from the day/night and enter/exit commands - Supplied with claws - Requires installation of the Starter Pack - Must be completed with a bracket (claws or screws) and a trim plate of an element of the Classia series of mechanisms - Aluminum

General features

Classia with Netatmo - connected current bases - to be completed with support and embellishing plate - built-in mounting by claws or screws to a universal box
