BTICINO R4707 R4707 BTCINO CL-SUPPORT RECTAN 7M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

R4707 BTCINO CL-SUPPORT RECTAN 7M

R4707

R4707

BTICINO

1 Pcs.

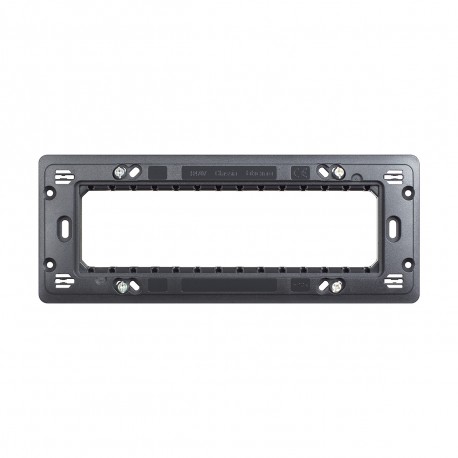

CL-SUPPORT RECTAN 7M Support with Classia screws - 7 modules Classia 7mod screw holder

Automation > Holder for modular domestic switching devices
classia mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to accommodate multi-gang electrical configurations, the R4707 BTCINO CL-SUPPORT RECTAN 7M acts as a robust mounting chassis for modular wiring inserts. Rectangular support frames maintain structural rigidity and precise alignment across extended rows of control devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): Yes
  • With nail (EF000370): No
  • Material (EF002169): Plastic
  • Mounting method of the module inserts (EF009577): Front
  • Material quality (EF001257): Thermoplastic
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with screw
  • Suitable for mounting in round junction box 60 mm (EF009579): No
  • With screws (EF005066): Yes
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 1
  • Number of modules horizontal (module system) (EF009571): 7
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Untreated
  • Flush-mounted installation (EF007517): No

More info

▲

Product features

Brackets - Support with screws for mechanisms and plates Classia - Plastic PC reinforced with fiberglass - 7 modules

General features

Classia - stands

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
