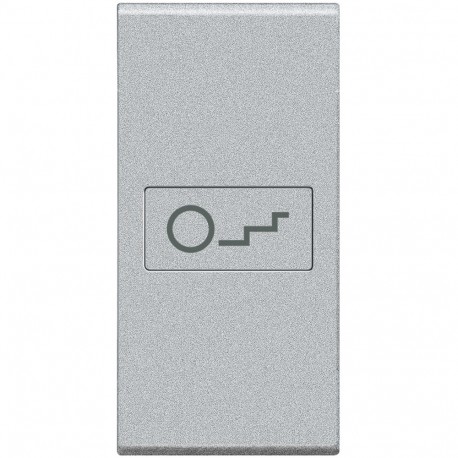

BTICINO NT4916B NT4916B BTCINO LL-KEY LL IL LIGHT ESC 1M TECH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NT4916B BTCINO LL-KEY LL IL LIGHT ESC 1M TECH

NT4916B

NT4916B

BTICINO

10 Pcs.

LL-KEY LL IL LIGHT ESC 1M TECH Key axial Livinglight symbol light ladder - 1 module - tech Livinglight axial key ladder light symbol - 1mod - Tech

Automation > Control element/cover plate for domestic switching devices
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Bticino light escape switch key (part number NT4916B) serves as a modular one-part button designed for commercial and residential electrical wiring accessories. Operators use illuminated push buttons to easily locate controls in dark corridors, stairwells, or equipment rooms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 43.5 mm
  • RAL-number (similar) (EF003882): 7035
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Utilization (EF000133): Switch/push button
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Suitable for degree of protection (IP) (EF006755): IP20
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK00
  • Imprint/indication (EF003823): Symbol "light"

More info

▲

Product features

Key symbol light ladder Livinglight - 1 module - Tech

General characteristics

Livinglight - keys
