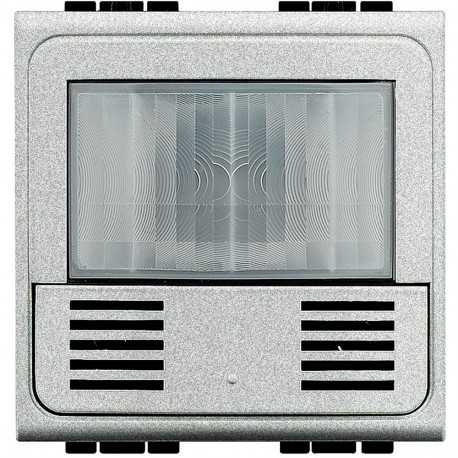

BTICINO NT4658N NT4658N BTCINO LL-SENSOR SCS IR+US TECH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NT4658N BTCINO LL-SENSOR SCS IR+US TECH

NT4658N

NT4658N

BTICINO

1 Pcs.

LL-SENSOR SCS IR+US TECH Motion Detector/brightness + button Livinglight MyHOME - tech PIR & US SCS Motion Detector - 2mod - Tech

Automation > Sensor element for movement sensor
DOMOTICS MY HOME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An NT4658N BTCINO LL-SENSOR SCS IR+US TECH functions as an automated detection device used in building automation systems to sense occupancy and presence, managing lighting or HVAC efficiency.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for wireless transmission (EF001198): No
  • Staircase light controller (EF001098): No
  • With orientation lighting (EF008862): No
  • Material (EF002169): Plastic
  • Response value luminosity adjustable (EF007575): Yes
  • Mounting height (EF003874): 1.2 m
  • Mounting method (EF000003): Flush mounted
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): No
  • Min. switch-on time (EF006589): 30 s
  • Combination movement sensor/push button switch (EF016109): Yes
  • Compatible with Apple HomeKit (EF014925): No
  • Compatible with Amazon Alexa (EF014927): No
  • Detection angle horizontal (EF006582): 0 °
  • Compatible with Google Assistant (EF014926): No
  • Dim function with dimmer basic element (EF003808): No

More info

▲

Product features

Motion detector/brightness push-button integrated control - automatic with integrated control - presence Sensor dual technology IR passive and ultrasound - brightness Sensor - Surface coverage 5 m wide by 180° and depth of field of 9 m for an installation height of 1.2 m - Power of the light to automatic or manual by button on front face, and auto power off depending on the brightness level scene and of the presence detection - Timing shutdown deferred, and level of lux adjustable - Option to maintain a level of lux constant associating an actuator/drive - 2 modules Version Livinglight - complete with a bracket and a plate Livinglight - Tech

General characteristics

MyHOME home automation - BUS - automation - motion detectors
