> BTICINO > AUTONOMOUS LIGHTING MANAGEMENT > NT4433N

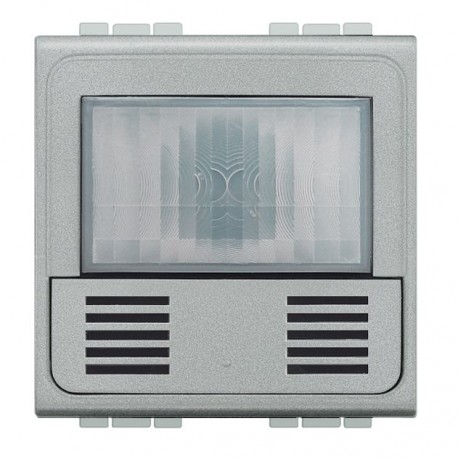

BTICINO NT4433N NT4433N BTCINO LL-SENSOR IR+US 2.5 TO 2M TECH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NT4433N BTCINO LL-SENSOR IR+US 2.5 TO 2M TECH

NT4433N

NT4433N

BTICINO

1 Pcs.

LL-SENSOR IR+US 2.5 TO 2M TECH LL-IR+US 2.5A 2M TECH SENSOR Detector 3-wire with neutral Livinglight - 2 module - Tech 3-wire detector with neutral Livinglight - 2mod - Tech

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino part number NT4433N is a presence detector that combines multiple sensing technologies to monitor zone occupancy and regulate automated room systems such as lighting and ventilation. These units are widely installed in offices and meeting spaces to reduce energy waste by turning off loads when rooms remain unoccupied.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch (EF001099): No
  • Staircase light controller (EF001098): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 5 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 180 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Animal zone (EF006311): No
  • Model (EF000010): Presence detector
  • With alarm function (EF005624): No
  • Optimum mounting height (EF008011): 1.2 m
  • Anti-bacterial treatment (EF023790): No
  • With acoustic sensor (EF017675): No

More info

▲

Product features

Presence Detector with neutral - Dual tech Infrared and Ultrasound, which allows a detection of presence accurate - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - Tech

General characteristics

Livinglight - detectors
