> BTICINO > AUTONOMOUS LIGHTING MANAGEMENT > NT4431N

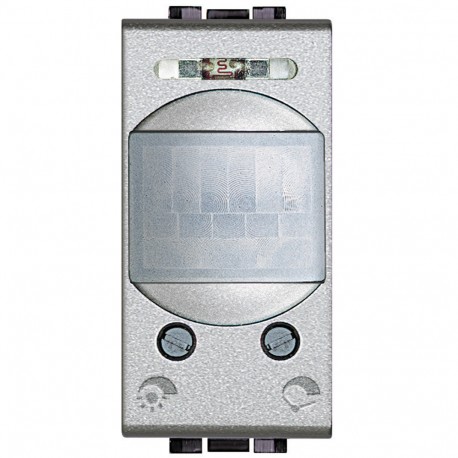

BTICINO NT4431N NT4431N BTCINO LL-IR SENSOR 2A 1M TECH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NT4431N BTCINO LL-IR SENSOR 2A 1M TECH

NT4431N

NT4431N

BTICINO

1 Pcs.

LL-IR SENSOR 2A 1M TECH LL-SENSOR IR 2A 1M TECH Automatic switch to GO to 2ND Livinglight - 1 module - Tech Livinglight 2A IR Automatic Switch - 1mod - Tech

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Switches to passive Infrared - Switch with motion detection to GO passive - Circuit of a twilight switch with a threshold variable with possibility of exclusion - Circuit timing adjustable from 30 seconds to 10 minutes - relay Output 2 A resistive/inductive, 0.5 A fluorescence/LED, 2 TO the cos ? = 0,5 motors 230 Vac - Power supply 230 Vac - 3-wire - 1 module - Tech

General characteristics

Livinglight - detectors

ETIM for NT4431N Domestic wiring accessories and controls (EC000133)
Feature Name Feature Value
Height (EF000040) 51 mm
With remote control (EF000483) No
Bridging switch (EF001099) No
Staircase light controller (EF001098) Yes
Material quality (EF001257) Thermoplastic
Mounting method (EF000003) Flush mounted
Min. switch-on time (EF006589) 30 s
Compatible with Apple HomeKit (EF014925) No
Detection angle horizontal (EF006582) -30 °
Compatible with Amazon Alexa (EF014927) No
Compatible with Google Assistant (EF014926) No
Response value sensitivity adjustable (EF003429) Yes
Animal zone (EF006311) No
Model (EF000010) Movement sensor
With alarm function (EF005624) No
Optimum mounting height (EF008011) 120 m
Max. duty cycle (EF006590) 600 min
Anti-bacterial treatment (EF023790) No
With acoustic sensor (EF017675) No
Background monitoring (EF017674) No
Max. starting current (EF001732) 2 A
Connection cable length (EF003636) 0 mm
Depth (EF000049) 47 mm
Temperature (EF001731) 5 °C
Substation input (EF003876) No
Suitable for C-load (EF003832) No
Colour (EF000007) Grey
Width (EF000008) 22 mm
With connection cable (EF005036) No
With signal unit (EF003890) No
Suitable for wireless transmission (EF001198) No
Material (EF002169) Plastic
Response value luminosity adjustable (EF007575) Yes
Voltage type (EF000187) AC
Surface finishing (EF006569) Matt
Halogen free (EF000025) Yes
Transparent (EF006243) No
Dim function with dimmer basic element (EF003808) No
Forced switch off (EF003920) No
Surface protection (EF000139) Other
Diameter reach on floor (EF003843) 6 m
Frequency (EF000416) 50 Hz
Remote operation (EF003848) No
Constant light control (EF003863) Yes
With DALI interface (EF009569) No
Nominal voltage (EF005127) 230 V
Max. reach sideways (EF001323) 6 m
Max. reach frontally (EF001322) 6 m
IFTTT support available (EF011072) No
Creep-under protection (EF000147) Yes
Teach-function for response value luminosity (EF003898) No
HVAC-control (EF003858) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
