View larger
Images are for illustrative purposes only. Please refer to data sheet for details

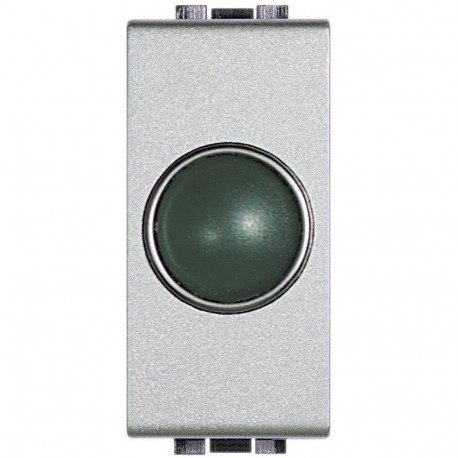

NT4371V BTCINO LL-DIFUS GREEN 1M TECH
NT4371V
NT4371V
BTICINO
1 Pcs.
LL-DIFUS GREEN 1M TECH
Beacon light Livinglight - diffuser green - Tech - 1 module
Livinglight light signaler - green diffuser - Tech - 1mod
Automation > Information light signal for domestic switching devices
LIVINGLIGHT MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Beacon light Diffuser green - 1 module - TechGeneral characteristics
Livinglight - lighting, buoys, signaling and security| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 0.15 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 230 V |
| Transparent (EF006243) | No |
| Min. depth of built-in installation box (EF012278) | 37 mm |
| Colour light source (EF001402) | Green |
| Surface protection (EF000139) | Lacquered |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | Yes |
| RAL-number (similar) (EF003882) | 9006 |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP2X |
| Device depth (EF008810) | 38 mm |
| Device width (EF008808) | 22 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Application as button (EF003912) | No |
| Device height (EF008809) | 44 mm |
| Lamp holder (EF000048) | Other |
| Colour (EF000007) | Grey |
| With exchangeable symbol (EF006748) | No |
