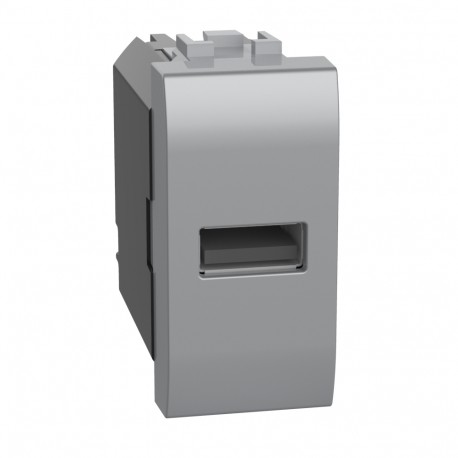

BTICINO NT4191A NT4191A BTCINO LL-BASE USB TO 3A/5V 1M TECH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NT4191A BTCINO LL-BASE USB TO 3A/5V 1M TECH

NT4191A

NT4191A

BTICINO

1 Pcs.

LL-BASE USB TO 3A/5V 1M TECH Livinglight USB Single Charger Base - Type A - Tech - 1 module

Automation > USB power supply
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a flush-mounted power interface, the Bticino NT4191A BTCINO LL-BASE USB TO 3A/5V 1M TECH operates as a USB charger tailored for architectural electrical installations. Such components provide reliable low-voltage power delivery for personal electronics directly from standard wall boxes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.069 W
  • Device width (EF008808): 22 mm
  • Device height (EF008809): 44 mm
  • Colour (EF000007): Aluminium
  • Number of ports USB-A (EF000997): 1
  • RAL-number (EF000116): 7035

More info

▲

Overview

USBA Chargers - 3A/5V - 15W - Allow fast charging of mobiles, tablets, smartphones, MP3, MP4 - Free up space for power bases - Standby <lt/> consumption 0.1 W - Class II TBTS - Supplied without cable - 1 module - Tech.

specifications

ModelOther
Number of USB-A ports1
Number of USB-C ports0
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-5 V
Power consumption0.069 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
Colouraluminium
RAL number7035
Device width22 mm
Device height44 mm
Device Depth41 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth30 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Nominal Voltage100-240 V
Power DeliveryNo
Nominal current0.5-0.5 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
