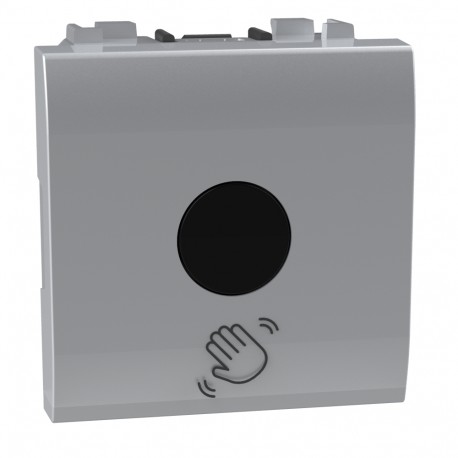

NT4005TL BTCINO LL-PULS S/CONT. 2M TECH DOOR
NT4005TL
NT4005TL
BTICINO
1 Pcs.
Automation > Movement sensor complete
LIVINGLIGHT MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The NT4005TL BTCINO LL-PULS S/CONT. 2M TECH DOOR from Bticino is an industrial push-button device built for modular electrical wall installations. Push switches like this one are commonly applied in control circuits to manually trigger specific operational states or lighting relays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 40 mm
- With remote control (EF000483): No
- Bridging switch (EF001099): Yes
- Suitable for ceiling mounting (EF021180): No
- Staircase light controller (EF001098): No
- Connection type (EF000124): Screwed terminal
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Flush mounted
- Compatible with Apple HomeKit (EF014925): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Min. depth of built-in installation box (EF012278): 43 mm
- Networkable (EF003904): Yes
- Response value sensitivity adjustable (EF003429): Yes
- RAL-number (similar) (EF003882): 7035
- Animal zone (EF006311): No
More info
▲| Model | Other |
|---|---|
| Motion sensor technology | Other |
| Constant light dimming | Yes |
| Control de HVAC | No |
| Forced connection | No |
| Forced disconnection | No |
| Animal Zone | No |
| Creep Protection/Field Monitoring | No |
| Background monitoring | No |
| Networkable | Yes |
| Optimal mounting height | 1.2 m |
| Stair Lighting Controller | No |
| Bypass switch | Yes |
| Suitable for wireless streaming | No |
| Remote control | No |
| With remote control | No |
| Adjustable response sensitivity | Yes |
| Adjustable response brightness | No |
| With signalling unit | No |
| Learn function for responsive brightness | No |
| Control function with control insert | No |
| Type of mounting | Recessed mounted (plaster) |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | No |
| Connection Method | Screw-on terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| Colour | aluminium |
| RAL number (similar) | 7035 |
| Transparent | No |
| Protection Class (IP) | IP20 |
| Impact resistance | IK04 |
|---|---|
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Nominal Voltage | 230-230 V |
| Suitable for C-load | No |
| Number of switching zones | 0 |
| Maximum starting current | 2 A |
| Starting current min. | 0.5 A |
| Input Extensions | No |
| Alarm function | No |
| With acoustic sensor | No |
| Ambient Temperature | 5-40 °C |
| Width | 40 mm |
| Height | 40 mm |
| Depth | 43 mm |
| Mounting width | 40 mm |
| Installation Depth | 33 mm |
| Installation Length | 40 mm |
| Min. depth of the recessed box | 43 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | No |
| Terminal capacity | 1-1.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Label Space/Print Area | No |
| Type of cable entry feedthroughs | Flexible to cut |
| Distance between horizontal clamping centers | 3.5-3.7 mm |
| Circuit breaker | No |
