View larger
Images are for illustrative purposes only. Please refer to data sheet for details

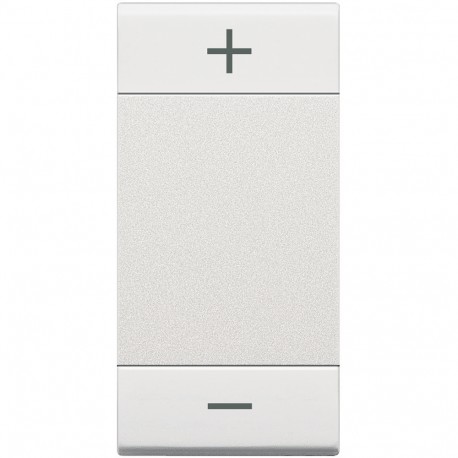

N4911ADN BTCINO LL-BUTTON DIMMER 1MOD WHITE
N4911ADN
N4911ADN
BTICINO
10 Pcs.
LL-BUTTON DIMMER 1MOD WHITE
LL-KEY DIMMER 1MOD WHITE
key Livinglight MyHOME - symbol +/- type rocker - 1 module - white
Livinglight MyHOME key - symbol +/- rocker type - 1mod - White
Automation > Control element/cover plate for domestic switching devices
DOMOTICS MY HOME
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
MyHOME Play via ZigBee radio - keys Livinglight - For mechanisms ref. L4651M2, L4652/2, L4652/3, L4671/1, L4678, LN4671M2, LN4661M2, LN4660M2, L4571 - For mechanisms MyHOME Play via radio ZigBee: - ref. N4598N: wireless control of regulation - ref. LN4585: inverter receiver without neutral 1 circuit 8-300 VA - key-type-rocker - With symbol "+" and "-" - 1 module - WhiteGeneral characteristics
MyHOME Play via ZigBee radio| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| RAL-number (similar) (EF003882) | 9016 |
| Model (EF000010) | Two-part rocker |
| Suitable for touch sensor connector for bus system (EF007802) | No |
| Material (EF002169) | Plastic |
| Utilization (EF000133) | Switch/push button |
| Monitoring window/light outlet (EF003864) | Yes |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Clamp mounting |
| Suitable for degree of protection (IP) (EF006755) | IP21 |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| With exchangeable lens/symbol (EF006039) | No |
| With label area (EF005040) | No |
| Scannable symbol/barrier free (EF012306) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK00 |
| Imprint/indication (EF003823) | Other |
| Depth (EF000049) | 5.3 mm |
| Colour (EF000007) | White |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 22.5 mm |
