> BTICINO > AUTONOMOUS LIGHTING MANAGEMENT > N4434N

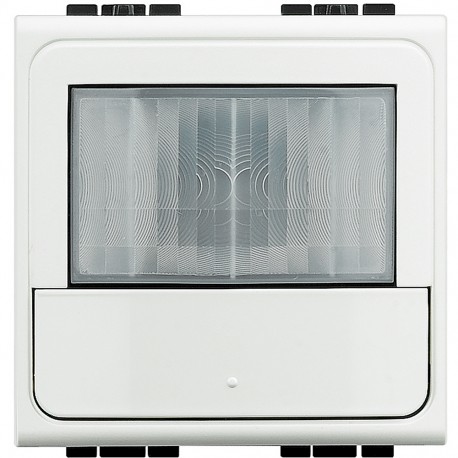

BTICINO N4434N N4434N BTCINO LL-IR SENSOR 2.5 TO 2M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

N4434N BTCINO LL-IR SENSOR 2.5 TO 2M WHITE

N4434N

N4434N

BTICINO

1 Pcs.

LL-IR SENSOR 2.5 TO 2M WHITE LL-SENSOR IR 2.5A 2M WHITE Green switch passive infrared + sensor brightness Livinglight - 2 modules - White Green passive infrared switch + Livinglight sensor - 2mod - White

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The N4434N BTCINO LL-IR SENSOR 2.5 TO 2M WHITE by Bticino functions as a movement sensor designed for flush installation in building interiors. Infrared movement sensors are commonly used to control electrical lighting loads based on physical presence, enhancing efficiency in shared spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch (EF001099): No
  • Staircase light controller (EF001098): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 5 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 180 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Animal zone (EF006311): No
  • Model (EF000010): Movement sensor
  • With alarm function (EF005624): No
  • Optimum mounting height (EF008011): 1.2 m
  • Anti-bacterial treatment (EF023790): No
  • With acoustic sensor (EF017675): No

More info

▲

Product features

Green switch with Infrared technology - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable from 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - White

General characteristics

Livinglight - detectors
