BTICINO N4432 N4432 BTCINO LL-IR SENSOR 6A 2M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

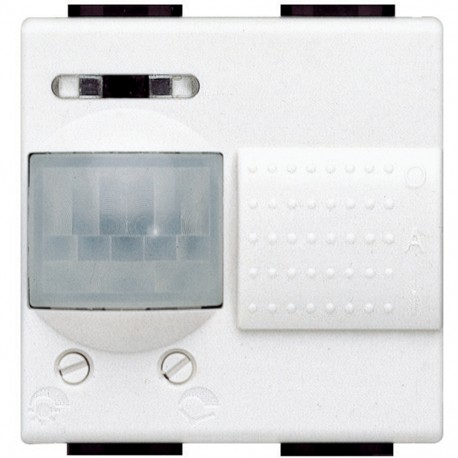

N4432 BTCINO LL-IR SENSOR 6A 2M WHITE

N4432

N4432

BTICINO

1 Pcs.

LL-IR SENSOR 6A 2M WHITE LL-SENSOR IR 6A 2M WHITE Detector 3-wire with neutral exclusion Livinglight - 2 modules - White 3-wire detector with neutral exclusion Livinglight - 2mod - White

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino ll-ir sensor 6a 2m white (part number N4432) is an infrared movement sensor engineered for flush-mounted electrical applications in architectural interiors. Motion sensors automatically activate lighting circuits upon detecting human presence, improving utility and energy efficiency.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch (EF001099): No
  • Staircase light controller (EF001098): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 30 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 105 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Animal zone (EF006311): No
  • Model (EF000010): Movement sensor
  • With alarm function (EF005624): No
  • Optimum mounting height (EF008011): 1.2 m
  • Anti-bacterial treatment (EF023790): No
  • With acoustic sensor (EF017675): No

More info

▲

Product features

Detector 3-wire, with neutral, to the exclusion of - Power type of lamps: - Halogen 230 V, incandescent : 0 to 1200 W - Halogen with transformer ferromagnetic: 0 to 1200 VA - Tubes fluo : 0 to 450 VA - Possibility of forcing the detector in mode ON, Automatic or OFF by the cursor 3 positions - additional option of controlling manually by push button - Timer 30 s to 10 min. - Brightness threshold from 5 lux to 2000 lux - detection Angle 105° - detection Distance 6 m - Power supply 230 Vac - 3-wire - 2 modules - White

General characteristics

Livinglight - detectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
