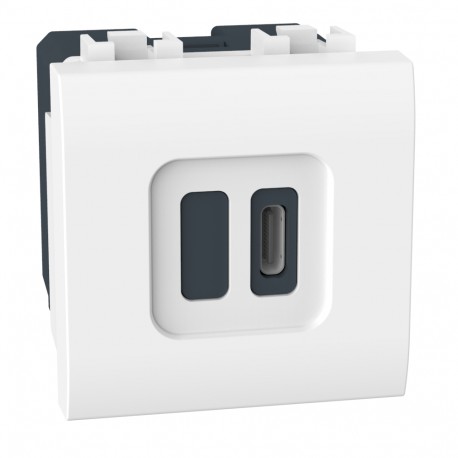

BTICINO N4288C2 N4288C2 BTCINO LL-BASE USB TYPE-C 3A 30W BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

N4288C2 BTCINO LL-BASE USB TYPE-C 3A 30W BLAN

N4288C2

N4288C2

BTICINO

1 Pcs.

LL-BASE USB TYPE-C 3A 30W BLAN USB Livinglight Base - 1 USB - Type-C - Power Delivery - 3.0000mA - 30W - 2 modules - White USB Livinglight Base - 1 USB Type C - 30W - 2mod - White

Automation > USB power supply
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a Bticino N4288C2 USB-C charging module, this flush-mounted electrical accessory provides dedicated high-output power delivery within wall environments. Such hardware solutions are standard in modern building automation and interior installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 45.6 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.059 W
  • Device width (EF008808): 43.8 mm
  • Device height (EF008809): 47 mm
  • Colour (EF000007): White
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 9003

More info

▲

Product features

The USB Type-C charger allows fast charging of mobile devices (tablets, smartphones, MP3 players, watches, etc.).

General features

USB Type-C Charger Power Delivery - Allows fast recharging of all types of devices from computers (PC - Mac), tablets (Apple - IOS Android) and smartphones (Apple / IOS Android) equipped with Power Delivery technology - Also allows the recharging of devices without Power Delivery technology (tablets and smartphones) - Power Delivery 3.0 optimizes the voltage supplied by reducing the charge cycle and preserving battery life - Level of energy efficiency: VI TUV - Standby consumption: 0.06 W - Automatic output voltages: 5 - 9 - 12 -15 - 20 V - Protected against surges - Installation in flush boxes with a minimum depth of 40 mm - 2x2.5 mm² screw terminals - Supplied without cable
