BTICINO N4279C6S N4279C6S BTCINO LL-BASE RJ45 CAT6 STP 1M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

N4279C6S BTCINO LL-BASE RJ45 CAT6 STP 1M WHITE

N4279C6S

N4279C6S

BTICINO

10 Pcs.

LL-BASE RJ45 CAT6 STP 1M WHITE Base RJ-45 Livinglight - Cat. 6 - STP - 1 module - White RJ45 Livinglight Base - Cat.6 - STP - 1mod - White

Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

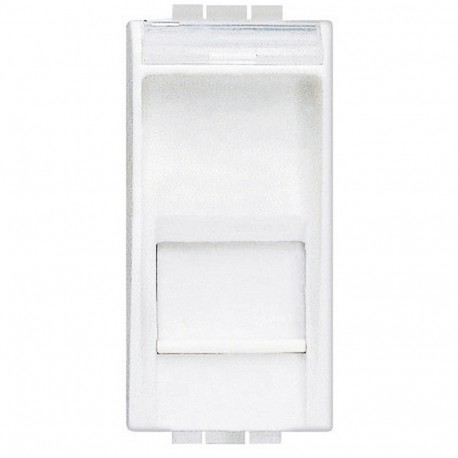

This product is a Bticino N4279C6S BTCINO LL-BASE RJ45 CAT6 STP 1M WHITE, serving as a shielded Category 6 network outlet module for high-speed Ethernet communication. Shielded modular connectors prevent electromagnetic disruption, maintaining signal integrity in demanding professional installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Duct installation (EF002440): No
  • With dust cover (EF003893): Yes
  • Colour coding (EF007758): Yes
  • Degree of protection (IP) (EF005474): IP21
  • With label space (EF003456): Yes
  • Separate earthing connection (EF002500): No
  • Type of fastening (EF002442): Engage (snap)
  • Floor box/subfloor mounted (EF003455): No
  • Number of modules (module system) (EF009573): 1
  • Mechanical coding (EF002910): No
  • Type of connector (EF002935): RJ45 8(8)
  • Surface mounting (EF003681): No
  • Separate strain relief (EF002450): No
  • Device depth (EF008810): 44 mm
  • Category (EF001619): 6
  • Device width (EF008808): 22 mm

More info

▲

Product features

Databases RJ-45 - Cat. 6 - STP - 1 module - White

General characteristics

Livinglight - Basis for data - Install in bracket and plate - Bases fast connection without need of tools - Contacts marked with dual colour code

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
