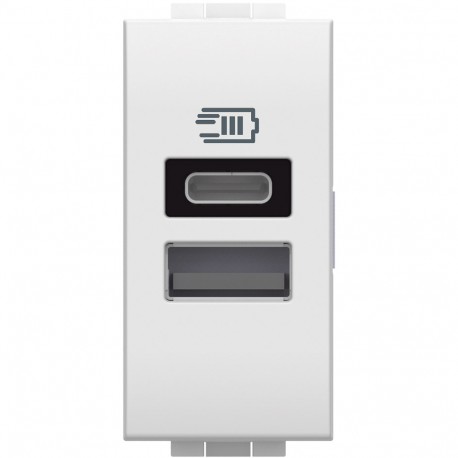

BTICINO N4191AC N4191AC BTCINO LL-BASE USB A+C 3A/5V 1M BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

N4191AC BTCINO LL-BASE USB A+C 3A/5V 1M BLAN

N4191AC

N4191AC

BTICINO

1 Pcs.

LL-BASE USB A+C 3A/5V 1M BLAN Livinglight USB Dual Charger Dock - Type A+C - White - 1 module Livinglight USB Double Charger Base - Type A+C - White - 1mod

Automation > USB power supply
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a Bticino N4191AC dual USB charger module, this flush-mounted electrical accessory delivers reliable power conversion directly from wall infrastructure. Units of this specification are widely deployed in modern architectural spaces to support device charging without external bricks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.091 W
  • Device width (EF008808): 22 mm
  • Device height (EF008809): 44 mm
  • Colour (EF000007): White
  • Number of ports USB-A (EF000997): 1
  • RAL-number (EF000116): 9003

More info

▲

Product features

USB A+C chargers - 3A/5V - 15W - Allow fast charging of mobiles, tablets, smartphones, MP3, MP4 - Free up space for power bases - Standby consumption0.1 W - Class II TBTS - Supplied without cable - 1 module - White

General features

Livinglight - USB chargers
