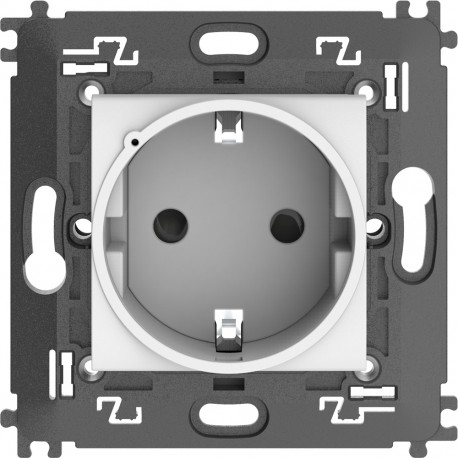

BTICINO N4141AC N4141AC BTCINO LLwN-BASE 2P+T BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

N4141AC BTCINO LLwN-BASE 2P+T BLAN

N4141AC

N4141AC

BTICINO

1 Pcs.

LLwN-BASE 2P+T BLAN The connected current base is used to control electrical equipment remotely - it can be associated with one or more wireless lighting commands for remote control - it allows you to control your consumption and receive notifications through the App Home + Control Legrand - requires the installation of the Starter Pack - white Connected power socket (Schuko standard) Living Light w/Netatmo - White

Automation > Socket outlet
LIVINGLIGHT WITH NETATMO

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino N4141AC is a flush-mounted socket outlet engineered to deliver reliable AC power distribution in modern building architectures. Socket inserts provide the primary physical and electrical interface for everyday plug-connected loads.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 240 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): Yes
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): Yes
  • Compatible with Google Assistant (EF014926): Yes
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm
  • With hinged lid (EF000117): No

More info

▲

Product features

The connected current base allows to measure the instantaneous and accumulated consumption - It is compatible with all types of electrical equipment, especially household appliances - It incorporates an additional protection incorporated in case of overloads greater than 16 A - It allows the configuration of the sending of notifications (breakdown, excess consumption, etc.) - It uses the same wiring (phase and neutral) as a traditional current base - It can be controlled from one or several wireless lighting commands and from the DAY/NIGHT and ENTER/EXIT commands - Supplied with claws - Can be installed with claws or screws (not supplied) - Requires installation of the Starter Pack - Must be completed with a bracket and a beautifying plate of an element of the Livinglight series of mechanisms - White

General features

Livinglight with Netatmo - connected current bases - to be completed with support and embellishing plate - built-in assembly by means of claws or screws to a universal box

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
